產品介紹
產品名稱：聲光油水界面計
品牌：Solinst
產地：加拿大
型號：122

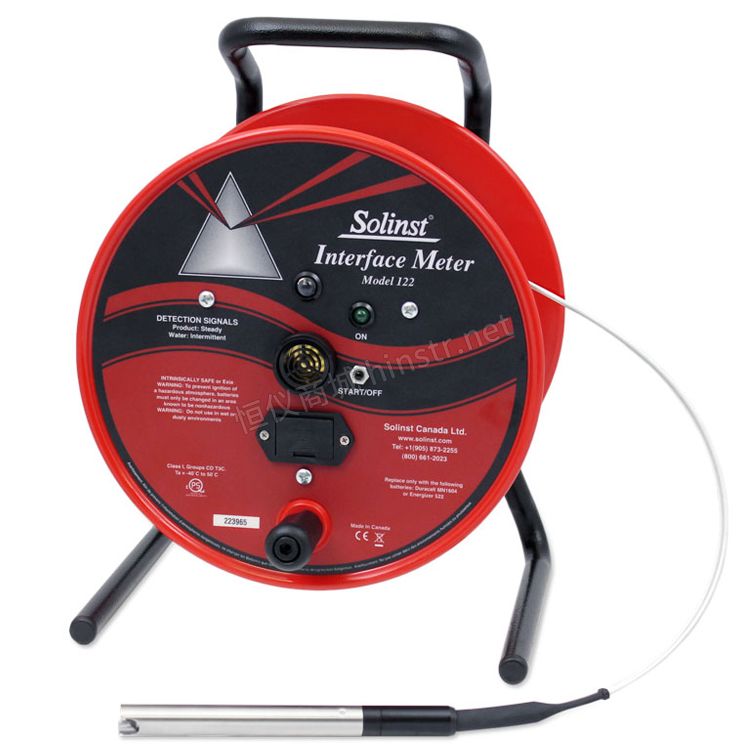

Solinst 油/水界面計可清晰準確地測量油井和儲罐中的產品液位和厚度。
輕（浮動）非水相液體 (LNAPL) 和稠密（下沉）非水相液體 (DNAPL) 的測定既快速又簡單。工廠密封的探頭是耐壓的（高達 500 psi），膠帶的長度范圍為 30 – 300 m（100 – 1000 ft）。
直徑為 16 mm (5/8") 的探頭可輕松進入狹窄的空間和狹窄的井中。該探頭設計用于各種監測應用。還提供 122M 迷你接口儀表，請參閱 122M 數據表了解更多信息。
危險場所使用：
- 122 型接口儀表已獲準在爆炸性環境中使用。它們適用于基于加拿大標準協會 (CSA) 標準的 I 類 1 區 C&D 組危險場所。
- 帶有激光標記膠帶的 122 型接口儀現已通過 ATEX 認證，符合指令 94/9/EC，即 II 3 G Ex ic IIB T4 Gc。
- 當儀表在潛在爆炸性環境中使用時，接地帶是安全必需品。它還確保電子設備得到適當的保護。
準確、可靠、堅固:
- 專為惡劣的現場使用而設計
- 具有自動循環測試的穩定電子設備
- 激光打標平膠帶易去污；抗污漬
- 膠帶使用多股不銹鋼和鍍銅鋼導體：
- 抗拉強度高；電效率
- 非拉伸；不腐蝕
- 堅固的帶提手的獨立式卷軸
特征:
- 傳感器精度達 1.0 毫米或 1/200 英尺
- 經過本質安全認證
- 16 mm (5/8") 直徑探頭
- 易于使用的 9V 電池
- 5分鐘后自動關機
- 替換磁帶可與其他儀表互換

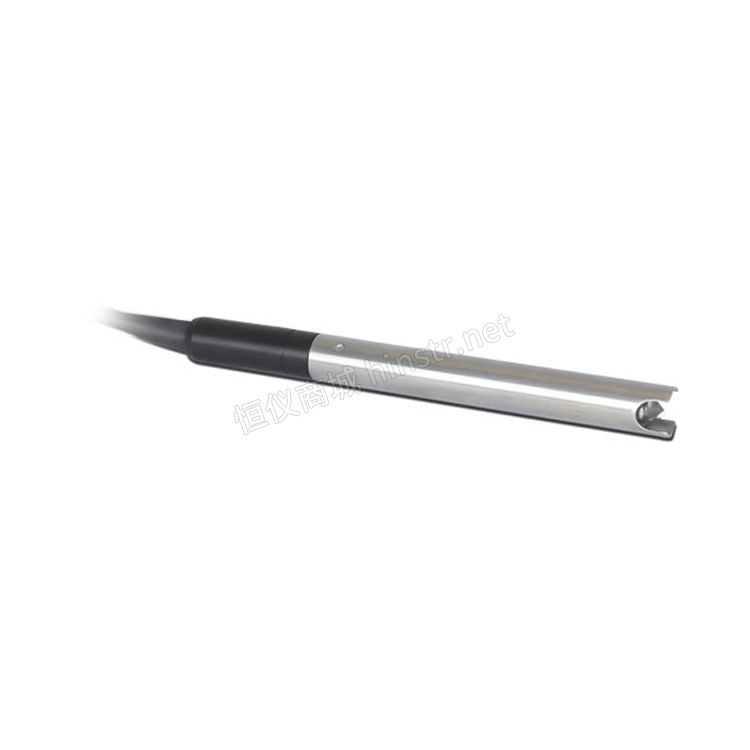

P8 探頭:
122 Interface Meter 使用直徑為 16 mm (5/8") 和不銹鋼的 P8 探頭。它是耐壓的，高達 500 psi。光束從 Hydex 錐形尖端內發射。尖端由一體式不銹鋼防護罩保護，非常適合絕大多數產品監控情況。

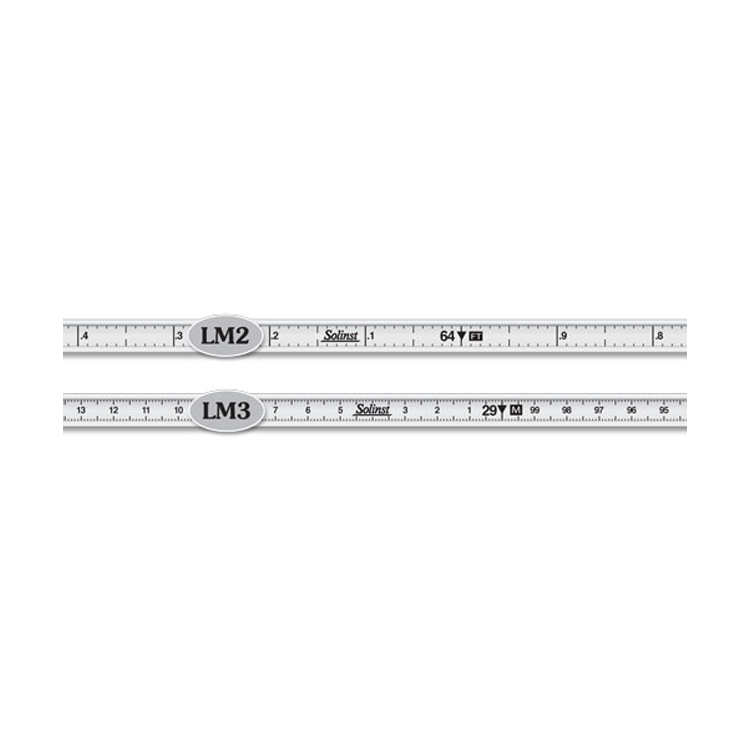

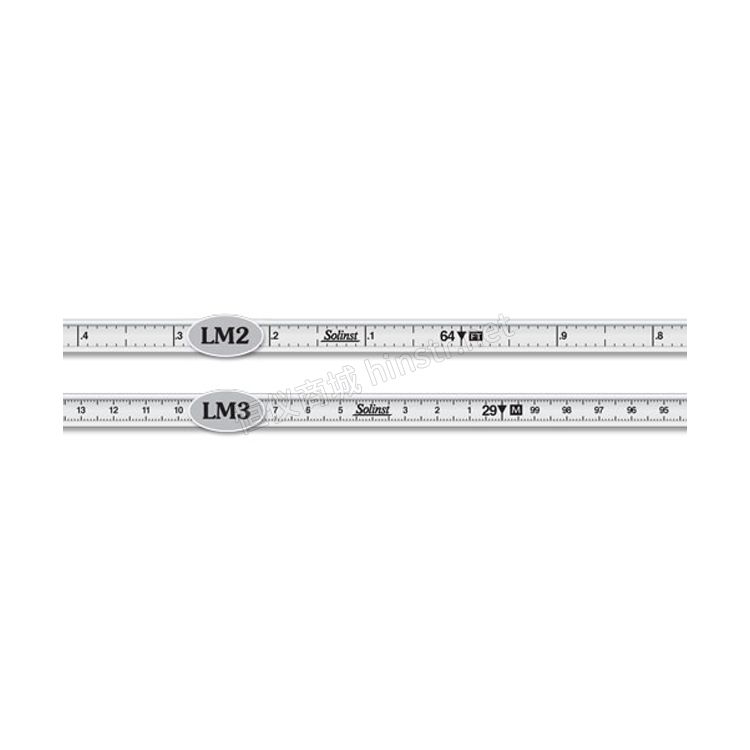

激光打標平膠帶：
扁平膠帶非常準確，可追溯至 NIST 和歐盟測量標準。
10 mm (3/8") 扁平膠帶上易于閱讀的標記是永久性激光標記的。狗骨形膠帶可避免粘附在井中的潮濕表面上。它耐大多數化學物質，并且表面光滑膠帶易于去污且易于處理。
LM2：英尺和十分之一：每 1/100 英尺標記一次。
LM3：米和厘米：每毫米標記一次。
中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：
Solinst Oil/Water Interface Meters give clear and accurate measurements of product level and thickness in wells and tanks.
Determination of both light (floating) non-aqueous phase liquids (LNAPL) and dense (sinking) non-aqueous phase liquids (DNAPL) is quick and easy. The factory-sealed probe is pressure proof (up to 500 psi) and tapes are available in a range of lengths from 30 – 300 m (100 – 1000 ft).
The 16 mm (5/8") diameter probe allows easy access through tight spaces and into narrow wells. The probe is designed for use in various monitoring applications. 122M Mini Interface Meters also available, see 122M Data Sheet for more information.
Hazardous Locations Use：
Model 122 Interface Meters have been approved for use in explosive environments. They are suitable for use in hazardous locations Class I, Div 1, Groups C&D based on standards of the Canadian Standards Association (CSA).
The Model 122 Interface Meter with laser marked tape is now ATEX certified under directive 94/9/EC, as II 3 G Ex ic IIB T4 Gc.
The grounding strap is a safety essential when the meter is used in potentially explosive environments. It also ensures that the electronics are properly protected.
Accurate, Reliable, Robust：
Designed for rugged field use
Stable electronics with automatic circulatory testing
Laser marked flat tape is easy to decontaminate; resists stains
Tape uses stranded stainless steel and copper coated steel conductors:
high in tensile strength; electrical efficiency
non-stretch; does not corrode
Sturdy free-standing reel with carrying handle
Features：
Sensor accuracy to 1.0 mm or 1/200 ft
Certified intrinsically safe
16 mm (5/8") diameter probe
Easy access 9V battery
Automatic shut off after 5 minutes
Replacement tapes are interchangeable with other Meters
P8 Probe：
The 122 Interface Meter uses the P8 Probe, which is 16 mm (5/8") in diameter and stainless steel. It is pressure proof, up to 500 psi. The beam is emitted from within a Hydex cone-shaped tip. The tip is protected by an integral stainless steel shield, and is excellent for the vast majority of product monitoring situations.
Laser Marked Flat Tape：
The flat tape is extremely accurate, traceable to NIST and EU measurement standards.
The easy-to-read markings on the 10 mm (3/8") flat tape are permanently laser-marked. The dog bone shaped tape avoids adherence to wet surfaces in wells. It is resistant to most chemicals, and the smooth surface of the tape is easy to decontaminate and easy to handle.
LM2: Feet and tenths: with markings every 1/100 ft.
LM3: Meters and centimeters: with markings every mm.
