加拿大Solinst驅動采樣壓力計（615N）

 產品名稱：驅動采樣壓力計
品牌：Solinst
產地：加拿大
型號：615N

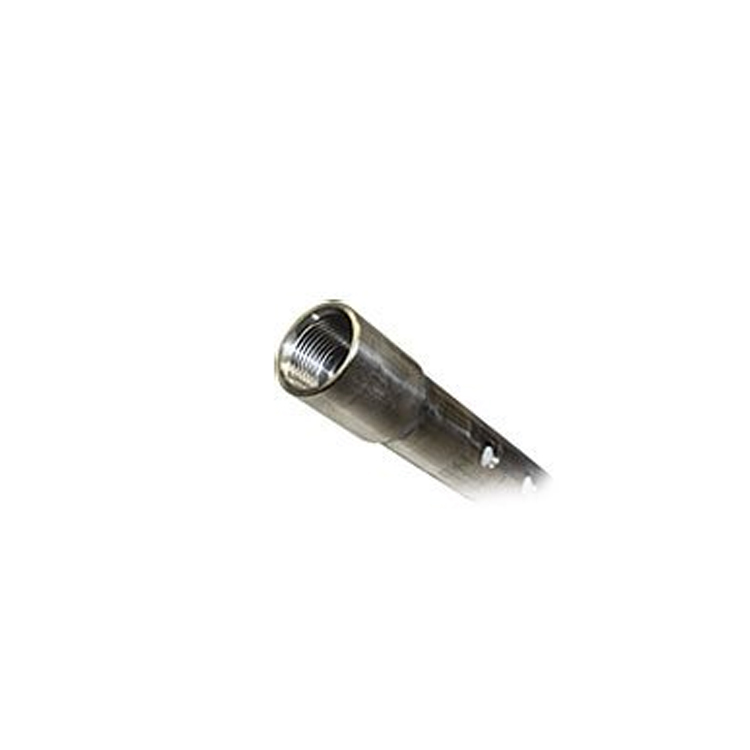

Solinst 615N 型驅動點滲壓計設計為沒有用于水位測量的管道倒鉤。這可以節省資金并為水位計提供更好的訪問權限。

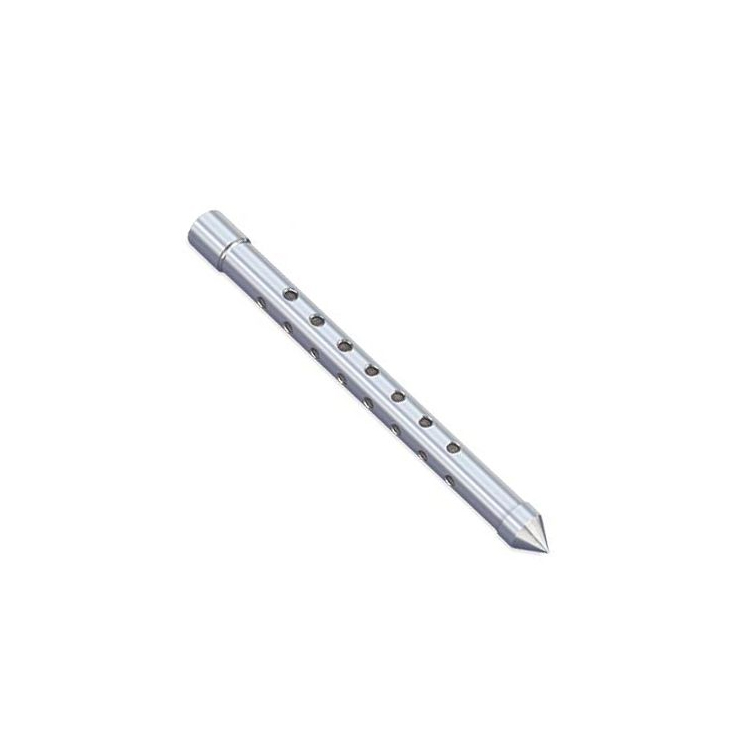

• 615 型驅動點滲壓計是一種經濟實惠的方法，可在合適的條件下監測淺層地下水和土壤蒸汽。
• 驅動點連接到便宜的 3/4" (20 mm) NPT 不銹鋼驅動管。驅動點設計用于一次性安裝，不用于拆卸和重復使用。索林斯特驅動點滲壓計通常作為永久性安裝井點。它們也可以用于臨時的、短期的監測應用。
• 當聚乙烯或聚四氟乙烯內襯管連接到不銹鋼驅動點時，可以獲得更高質量的樣品?？梢允褂眯≈睆皆O備在管道內進行地下水采樣和水頭測量。
• Solinst 驅動點滲壓計可以通過任何直接推動或鉆孔技術（包括手動滑錘）進入地下。為避免在安裝過程中堵塞或弄臟屏幕，還提供屏蔽版本。615 個 ML 端口為一個驅動器中多達 6 個區域的多級監控提供了選項。



應用：

• 高分辨率垂直輪廓
• 地下水采樣，包括 VOC
• 多級地下水監測
• 水位監測
• 河床基流監測
• 污染物羽流輪廓
• 土壤氣體采樣
• UST監控
• 低成本和**小干擾現場評估
• 噴霧點
• 垂直地層剖面

615N 簡易井點
水位監測和地下水采樣

615 N 設計為不帶管倒鉤，用于水位測量。這可以節省資金并為水位計提供更好的訪問權限。

Solinst 驅動點滲壓計有五種不同的配置。帶倒鉤接頭的 615、不帶倒鉤接頭的 615 N、帶壓縮接頭的 615 C、帶倒鉤接頭和護罩的 615 S、帶護罩和不帶倒鉤接頭的 615 SN，以及帶護罩的 615 ML雙倒鉤端口閥桿。

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

The Model 615 Drive-Point Piezometer is designed as an affordable method to monitor shallow groundwater and soil vapor in suitable conditions.

The Drive-Points attach to inexpensive 3/4" (20 mm) NPT stainless steel drive pipe. The Drive-Points are designed for single use installations, and not for removal and reuse. Solinst Drive-Point Piezometers are most often installed as permanent well points. They can also be used for temporary, short term monitoring applications.

Higher quality samples can be obtained when polyethylene or PTFE-lined tubing is attached to the stainless steel drive-point. Groundwater sampling and hydraulic head measurements can be taken within the tubing using small diameter equipment.

Solinst Drive-Point Piezometers can be driven into the ground with any direct push or drilling technology, including the Manual Slide Hammer. To avoid clogging or smearing of the screen during installation, a shielded version is also available. 615 ML ports provide the option for multilevel monitoring for up to 6 zones in one drive.



Applications：

• High-resolution vertical profiling
• Groundwater sampling, including VOCs
• Multilevel groundwater monitoring
• Water level monitoring
• Base flow monitoring in stream beds
• Contaminant plume delineations
• Soil gas sampling
• UST monitoring
• Low cost and minimal disturbance site assessment
• Sparge points
• Vertical stratigraphy profiling

High Quality Samples：

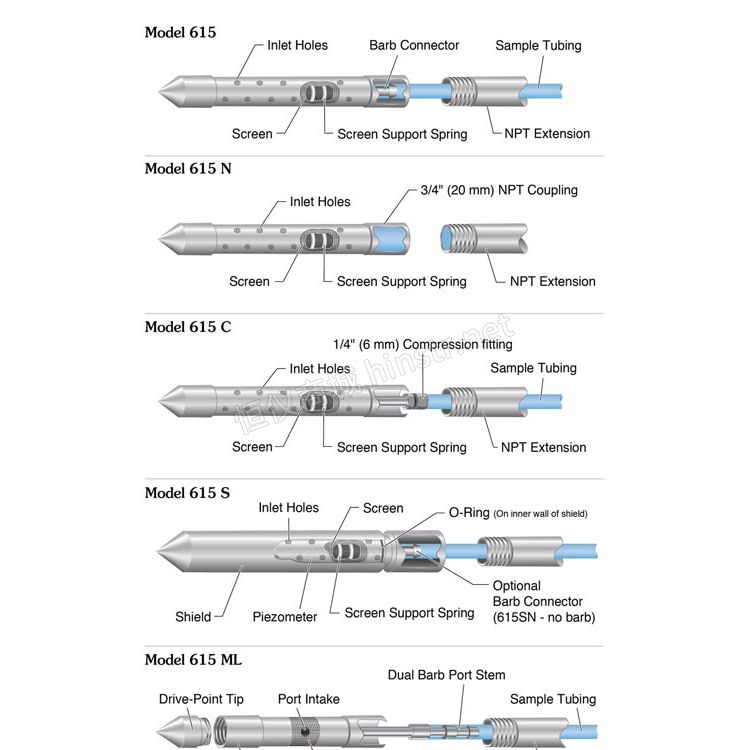

Model 615 Drive-Point Piezometers have a stainless steel, 50 mesh cylindrical filter-screen (100 mesh for ML), within a 3/4" (20 mm) stainless steel drive-point body, screen support and an optional fitting for attachment of sample tubing.

The 615 N or 615 SN, designed without a tubing barb, is to be used for water level measurements. This saves money and provides better access for Water Level Meters.

The 615 or 615 S has an inner barbed fitting for 5/8" OD x 1/2" ID (16 mm x 12 mm) LDPE or PTFE-lined sample tubing. This prevents sample water from contacting the extension rods, and maintains high sample integrity, even when inexpensive galvanized steel extensions are used.

The 615 C is ideal for soil vapor sampling. Where an air-tight connection is most desirable, the compression fitting option allows users to attach 1/4" OD (6 mm) sample tubing directly to the top of the screened portion of the drive-point.

The 615 S and 615 SN shielded drive points have a single use, 1-1/2" (38 mm) dia. shield to avoid smearing and plugging of the screen during installation. The strengthened connector at the top of the drive-point acts as an annular seal, which avoids contamination from higher levels in the hole.

The 615 ML Multilevel Drive-Point Ports have a dual barb stem to allow the connection of 3/8" OD (9.5 mm) or 1/4" OD (6 mm) tubing. The 615 ML uses the same couplings and extensions as the standard 615 Piezometers, but with a Drive-Point Tip to thread onto the first extension, or Port. Formation water enters the port, passes into the stem, and up into the monitoring tube attached to the stem to its static level. The 615 ML is also a good option for high resolution profiling of soil gas, or groundwater.

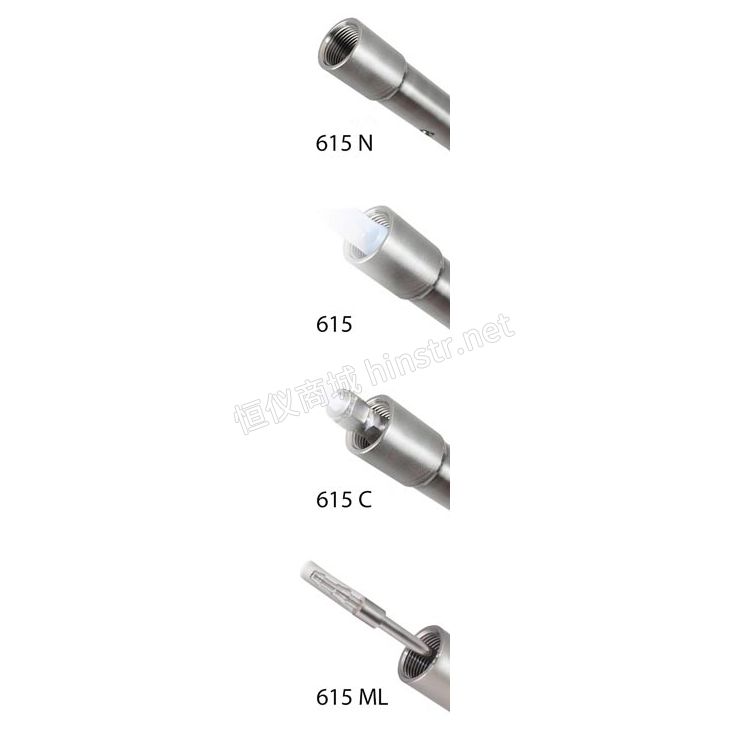

Solinst Drive-Point Piezometers are available in five different configurations; the 615 with a barbed fitting, the 615 N with no barbed fitting, the 615 C with a compression fitting, the 615 S with a barbed fitting and shield, the 615 SN with a shield and no barbed fitting, and the 615 ML with a dual barb port stem.
