美國metone溫度濕度壓力傳感器597A

 產品名稱: 溫度濕度壓力傳感器

型號系列:597A

品牌:metone

產地:美國

價格:**終成交價格需聯系客服

溫度濕度壓力傳感器 597A

597 是一款集成的溫度、相對濕度和壓力測量傳感器。所有傳感元件均具有**質量，專為在惡劣環境中連續工作而設計。溫度傳感器采用 1/3B 級鉑 RTD。相對濕度是基于我們非常精確的固態傳感器設計，可以持續暴露在惡劣的氣候中。氣壓傳感器是一種壓阻式設備，專為堅固耐用、高精度和長期穩定性而設計。

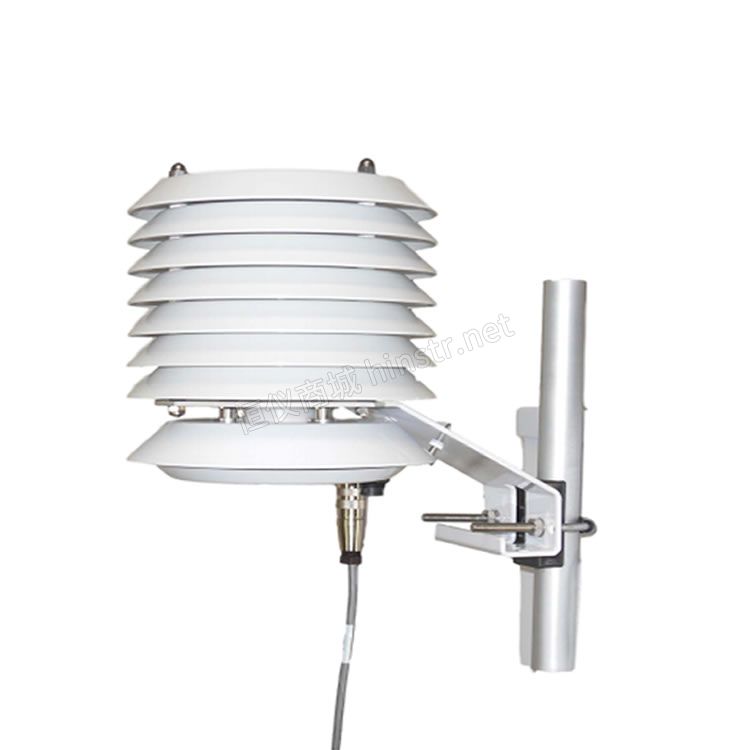

所有組件都安裝在 Multi-Plate 自然吸氣式輻射防護罩中，以減少太陽輻射加熱誤差。防護罩由一系列白色鋁質同心板組成，允許氣流通過防護罩，同時阻擋直射太陽射線。

597 具有模擬和數字輸出，可通過可選的 10600 接口提供額外的連接選項以實現**的靈活性。模擬輸出提供與數據記錄器和系統的常規連接，使用與三個測量值中的每一個成比例的電壓。

數字輸出每秒可作為串行數據流使用，或根據數據系統的命令提供。數字輸出提供更高的分辨率和對模擬偏移問題的免疫力。

溫度濕度壓力傳感器 597A特征

溫度、濕度、壓力
緊湊型設計
粉末涂層陽極氧化鋁結構
數字和模擬輸出
簡易安裝
IP65 防水等級

溫度濕度壓力傳感器 597A應用：

環境監測
粉塵監測
公共和工作場所監控
采礦和礦石加工
智慧城市
氣候研究
可再生能源

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

Temperature Humidity Pressure Sensor 597A
The 597 is an integrated Temperature, Relative Humidity and Pressure measurement sensor. All sensing elements are of the highest quality and are specifically designed for continuous duty in hostile environments. The temperature sensor utilizes platinum RTD class 1/3B. Relative Humidity is a based on our very accurate solid-state sensor design for continuous exposure to adverse climates. The Barometric Pressure sensor is a piezo-resistive device designed for robustness, high accuracy and long-term stability.

All components are housed in a Multi-Plate naturally aspirated Radiation shield to reduce solar radiation heating errors. The shield consists of a series of white aluminum concentric plates, which allow air flow to pass through the shield, while blocking direct solar rays.

The 597 has both analog and digital outputs for maximum flexibility with additional connectivity options available with optional 10600 Interface. Analog outputs provide conventional connections to data loggers and systems utilizing a voltage proportional to each of the three measurements.

Digital outputs are available as a serial data stream every second, or upon command by the data system. The digital outputs offer higher resolution and immunity to analog offset problems.

FEATURES
Temperature, Humidity, Pressure
Compact Design
Powder Coated Anodized Aluminum Construction
Digital and Analog Outputs
Easy installation
IP65 Weather Proof Rated
APPLICATIONS:
Ambient Monitoring
Dust Monitoring
Public & Workplace Monitoring
Mining & Ore Processing
Smart Cities
Climate Research
Renewable Energy
