美國YSI實驗室儀器套件MultiLab IDS

 產品名稱: 美國YSI實驗室儀器套件

型號系列:MultiLab IDS

品牌:YSI

產地:美國

價格:**終成交價格需聯系客服



pH、ORP、電導率和 BOD 任意組合的實驗室儀器。

YSI MultiLab 系列儀器用于 pH、ORP、電導率、BOD 和離子活度測量

YSI MultiLab 系列包括適用于實驗室的 4010-1（單通道）、4010-2（雙通道）和 4010-3（三通道）儀器。

美國YSI實驗室儀器套件MultiLab IDS概述

626570 MultiLab BOD 實驗室套件：MultiLab 4010-1 和 OBOD 探頭

626571 MultiLab 高級 BOD 實驗室套件：MultiLab 4010-1、OBOD 探頭和 BOD Analyst Pro PC 軟件

626572 MultiLab pH 實驗室套件：MultiLab 4010-1 和 pH 電極（帶集成溫度傳感器的雙結復合電極）

626573 MultiLab BOD/pH 實驗室套件：MultiLab 4010-2、OBOD 探頭和 pH 電極（帶集成溫度傳感器的雙結復合電極）

626574 MultiLab 高級 BOD/pH 實驗室套件：MultiLab 4010-2、OBOD 探頭、BOD Analyst Pro PC 軟件和 pH 電極（帶集成溫度傳感器的雙結復合電極）

YSI MultiLab 系列包括4010-1（單通道）、  4010-2（雙通道）和 4010-3（三通道）儀器，提供易于使用和校準的菜單驅動操作，是實驗室的理想選擇。

MultiLab 儀器可以在實驗室中準確測量 pH、ORP、電導率和 DO/BOD。此外，ISE 可以通過MultiLab BNC 適配器連接到 MultiLab 4010-2 和 4010-3 。

MultiLab 儀器特點：

pH、ORP、DO/BOD 或電導率傳感器的輸入
數據存儲 - 手動模式下的 500 個數據集和自動記錄模式下的 5,000 (MultiLab 4010-1) 或 10,000 (MultiLab 4010-2/3) 數據集。
大而易讀的圖形顯示。MultiLab 4010-2/3 配備彩色屏幕
MultiLab 4010-2/3 上的抗菌鍵盤
智能數字傳感器 - 即插即用傳感器
GLP 可追溯性（傳感器存儲序列號和校準數據）
用于管理數據的 USB 連接
3年質保
智能數字傳感器 (IDS)

IDS 傳感器自動存儲其**的序列號和校準數據。此外，它們還對測量信號進行數字處理。傳感器可以在儀器之間移動并保持其校準數據并將此信息傳輸到新儀器。

即插即用連接每個樂器
IDS 傳感器存儲自己的** ID 以及序列號和校準數據
數字傳感器識別、處理和數據傳輸
包括自攪拌 BOD、pH、ORP 和電導率傳感器
BOD 探頭使用光學溶解氧技術，并包括一個防護傳感器尖端
中央軍委

CMC 功能顯示對傳感器測量范圍的持續監控。范圍用條形表示，校準點在校準點顯示為垂直線。移動光標顯示當前測量值并指示測量值是否在校準范圍內。

質量傳感器控制

QSC 是一個監測 pH 電極狀態的系統。執行初始校準，然后監控傳感器狀態并隨時間以圖形方式顯示。

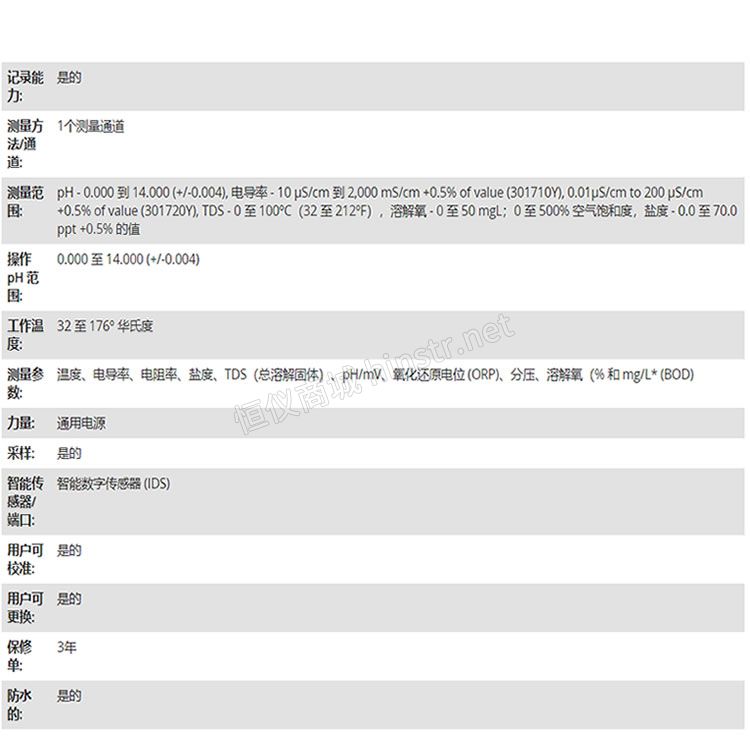

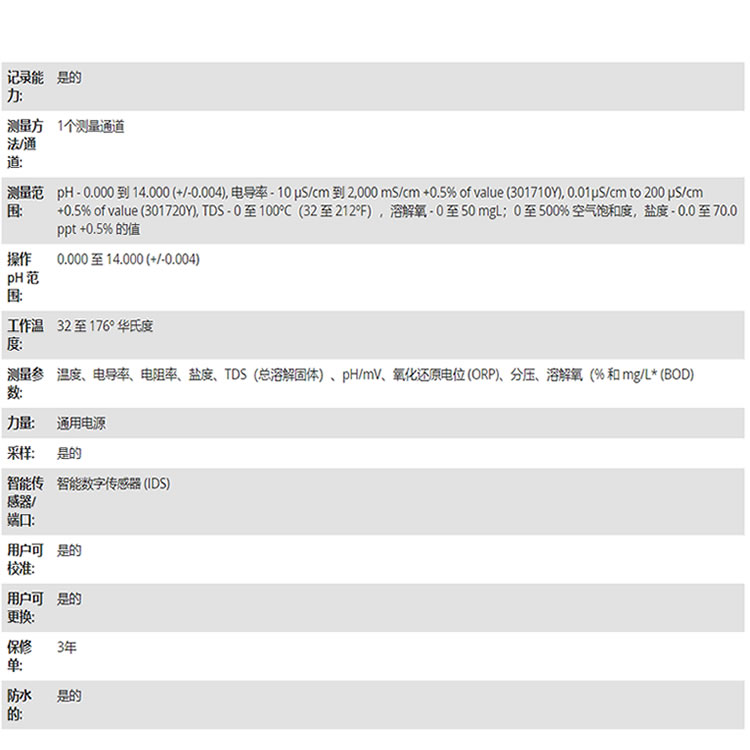

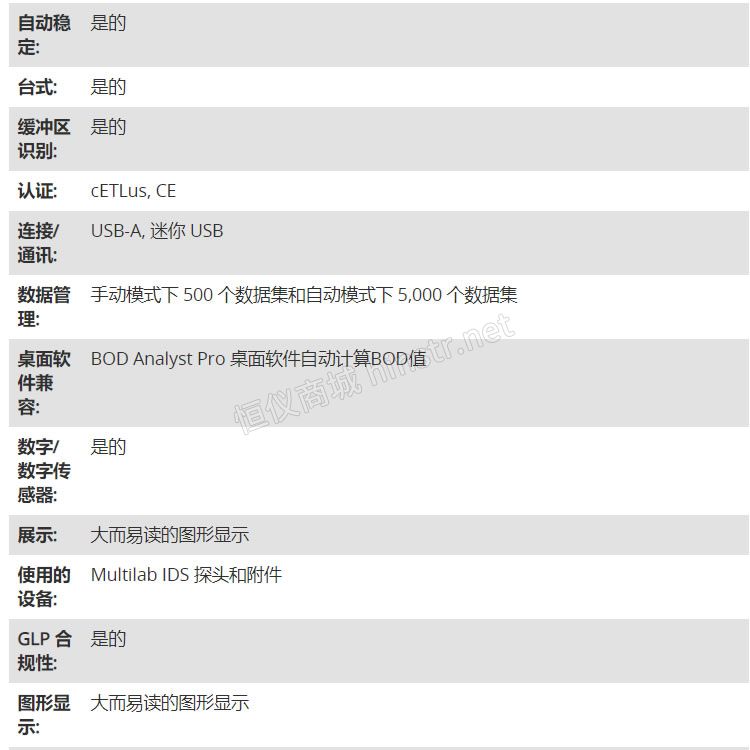

美國YSI實驗室儀器套件MultiLab IDS規格

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

Laboratory instrument for pH, ORP, conductivity and BOD in any combination.

YSI MultiLab Line of Instruments for pH, ORP, conductivity, BOD and Ion Activity Measurement

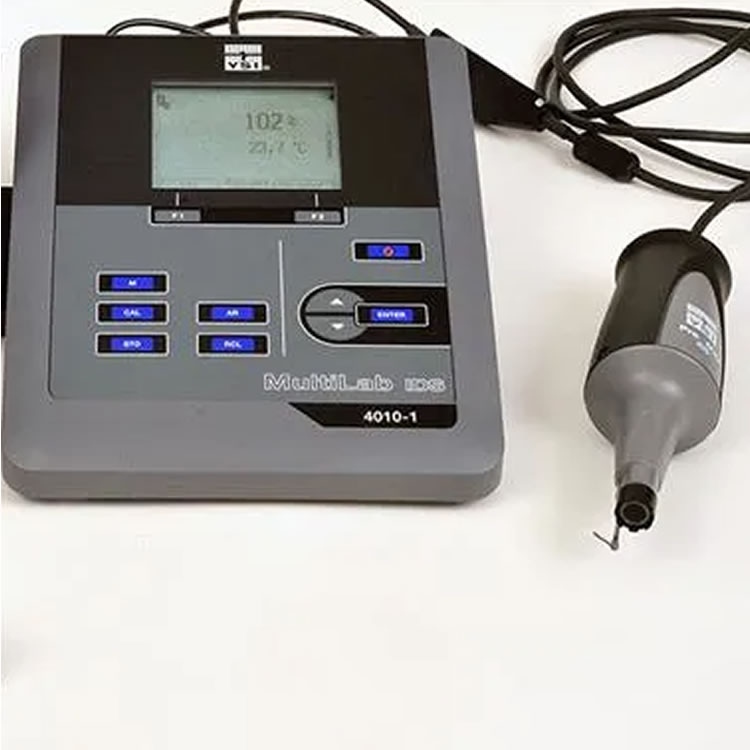

The YSI MultiLab line includes the 4010-1 (single channel), 4010-2 (dual channel) and 4010-3 (three channel) instruments ideal for the laboratory.

Overview

626570 MultiLab BOD Lab Kit: MultiLab 4010-1 and OBOD probe

626571 MultiLab Advanced BOD Lab Kit: MultiLab 4010-1, OBOD probe, and BOD Analyst Pro PC software

626572 MultiLab pH Lab Kit: MultiLab 4010-1 and pH electrode (dual junction combination electrode with integrated temperature sensor)

626573 MultiLab BOD/pH Lab Kit: MultiLab 4010-2, OBOD probe, and pH electrode (dual junction combination electrode with integrated temperature sensor)

626574 MultiLab Advanced BOD/pH Lab Kit: MultiLab 4010-2, OBOD probe, BOD Analyst Pro PC software, and pH electrode (dual junction combination electrode with integrated temperature sensor)

The YSI MultiLab line includes the 4010-1 (single channel), 4010-2 (dual channel) and 4010-3 (three channel) instruments providing easy to use and calibrate menu-driven operation ideal for the laboratory.

The MultiLab instruments can accurately measure pH, ORP, conductivity, and DO/BOD in the laboratory. In addition, ISEs can be connected to the MultiLab 4010-2 and 4010-3 with the MultiLab BNC Adaptor.

MultiLab instrument features:
Input for pH, ORP, DO/BOD, or conductivity sensors
Data storage - 500 data sets in manual mode and 5,000 (MultiLab 4010-1) or 10,000 (MultiLab 4010-2/3) data sets in automatic logging mode.
Large, easy to read graphic display. MultiLab 4010-2/3 feature a color screen
Antibacterial keypad on the MultiLab 4010-2/3
Intelligent, digital sensors - plug and play sensors
GLP traceability (sensors store serial # and calibration data)
USB connectivity to manage data
3-year warranty
Intelligent Digital Sensors (IDS)

The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The sensors can be moved from instrument to instrument and maintain their calibration data and transmit this information to the new instrument.

Plug and play connectivity with each instrument
IDS senors store their own unique ID with serial number and calibration data
Digital sensor recognition, processing and data transfer
Includes self-stirring BOD, pH, ORP and conductivity sensors
BOD probe uses optical dissolved oxygen technology and includes a guarded sensor tip
CMC

The CMC function displays continual monitoring of the sensor's measuring range. The range is represented with a bar and calibration points are shown as vertical lines at the cal point. A moving cursor shows the current measured value and indicates if the measurement is within the calibrated range.

Quality Sensor Control
QSC is a system to monitor the condition of the pH electrode. An initial calibration is performed and, afterwards, the sensor status is monitored and graphically displayed over time.

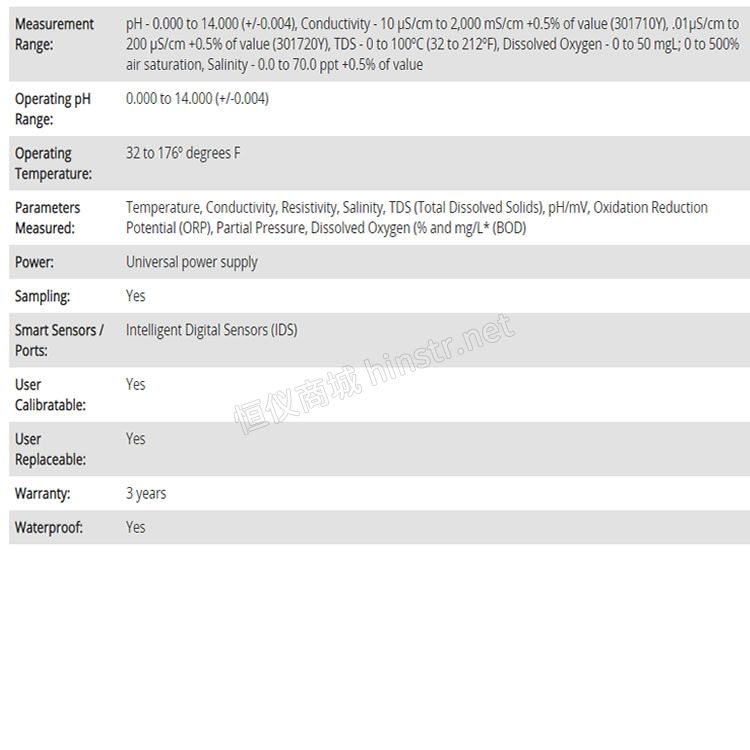

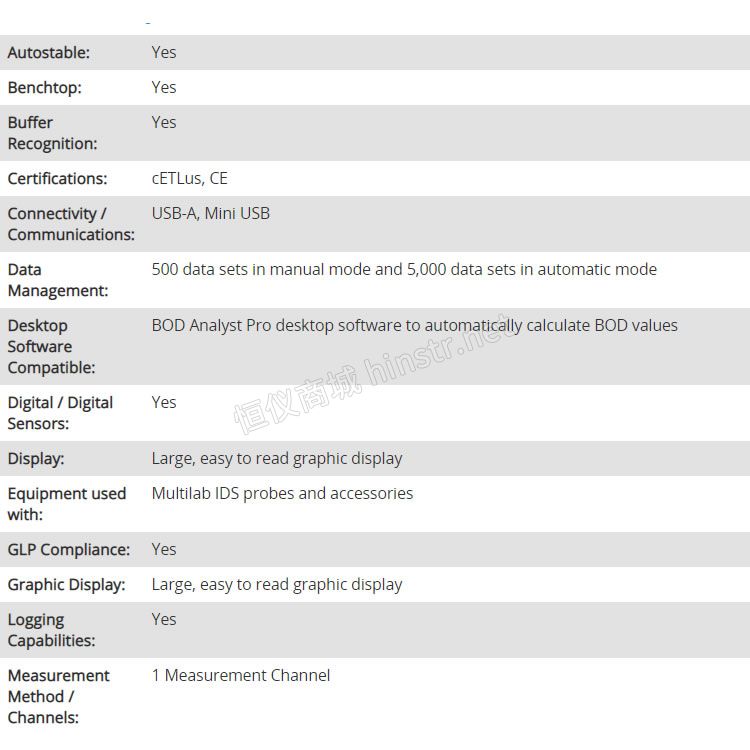

Specifications
