美國YSI自主水下航行器i3XO EcoMapper

 產品名稱: 自主水下航行器

型號系列:i3XO EcoMapper

品牌:YSI

產地:美國

價格:**終成交價格需聯系客服






下一代自動水質車輛。i3XO 可生成水質、水流、水深測量和聲納圖像的高分辨率地圖。

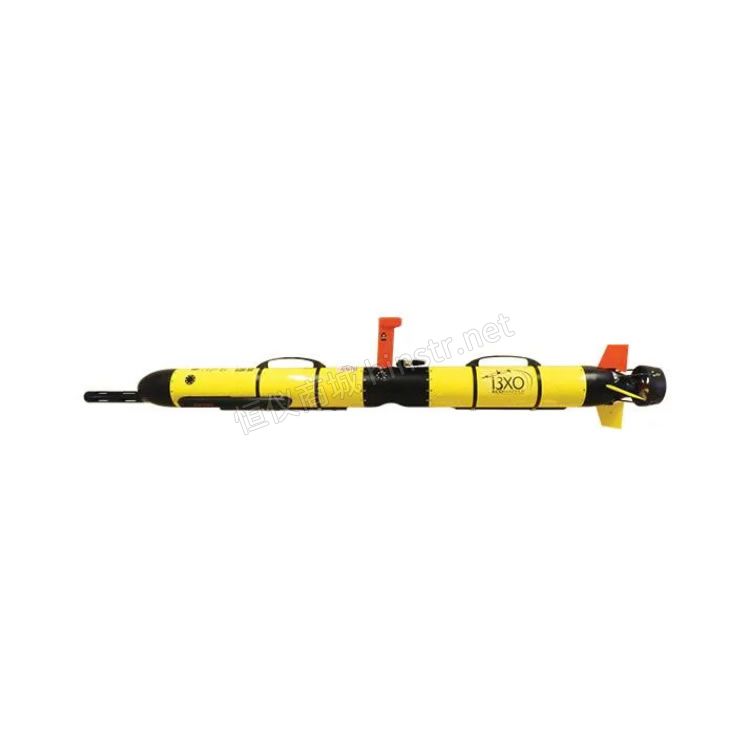

i3XO EcoMapper 自主水下航行器

i3XO EcoMapper AUV（自主水下航行器）將提供高分辨率水質數據、側掃聲納成像、下視電流剖面和水深測量。

美國YSI自主水下航行器i3XO EcoMapper概述

YSI Integrated Systems & Services與 Ocean Server Technology 合作，將 Iver3 自主水下航行器和 YSI EXO水質系統相結合，打造出 i3XO AUV。i3XO 將**新的水質和 AUV 結合為一個強大的監測平臺。

i3XO AUV 將提供高分辨率水質數據、側掃聲納成像、下視電流剖面和水深測量。由政府機構、軍隊、大學、承包商和私人組織使用，i3XO 的多功能性非常適合您的所有監控要求。

研究人員和科學家依靠 AUV、更小、更快的儀器實現實時測繪、傳感

美國YSI自主水下航行器i3XO EcoMapper特征：

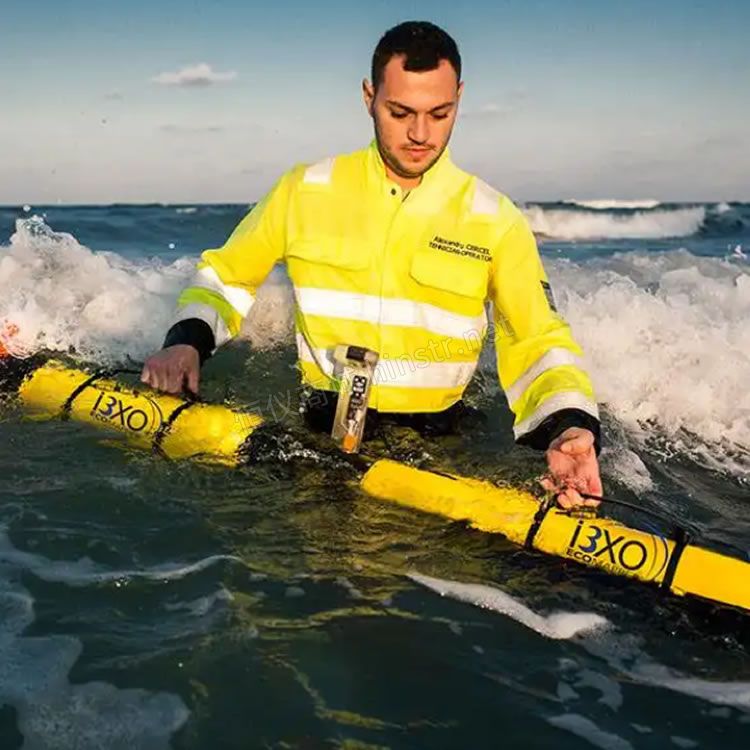

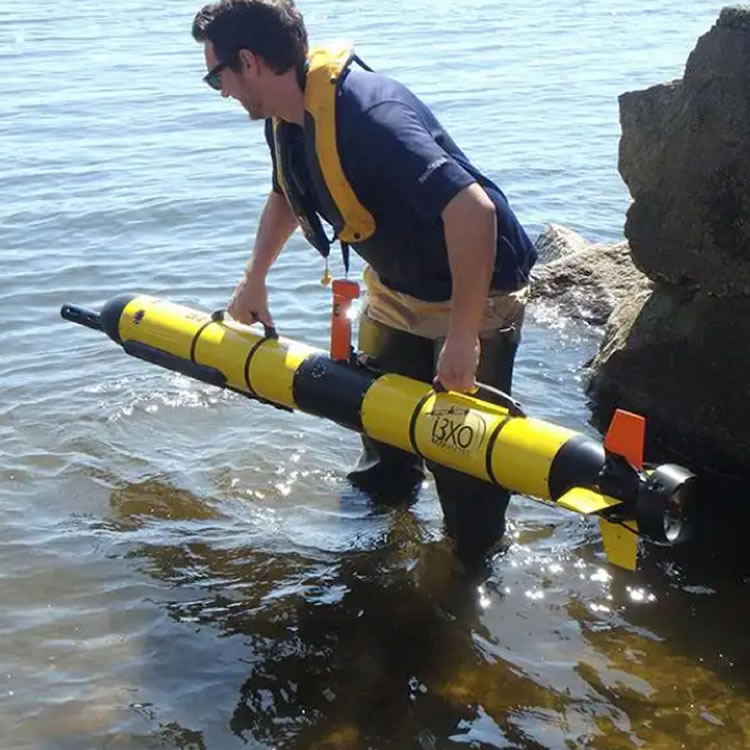

一人可部署系統
直觀的點擊式任務規劃（用戶定義或預定義模式）
地理參考數據
*多達 8 個水質參數（*4 個傳感器端口 - 使用EXO1 多參數探頭）
底部測繪和水柱剖面圖
作業深度可達 100 米
不使用船完成廣域勘測

美國YSI自主水下航行器i3XO EcoMapper規格：

英特爾雙核 1.6 GHz N2600 處理器，內嵌 MS Windows；高達 512 GB 固態硬盤用于數據存儲，高達 512 GB 固態硬盤用于數據存儲
通訊；表面：用于手持遙控器的 2.4 GHz 遙測無線電；和/或 Iridium 與基于云的跟蹤軟件。無線 802.11g 以太網標準
導航; 表面：GPS（WAAS 校正）。地下：RDI 多普勒速度日志 (DVL) 向下看，81M 范圍，深度傳感器和校正羅盤
48V 伺服控制直流電機，帶 3 葉片鑄銅螺旋槳
通過支持 USB 2.0 的 24V 外部連接器充電
四個獨立的控制平面（俯仰/偏航鰭）
60-85” LX 5.8” 直徑，59-85lbs 重量
堅固、輕質的碳纖維和船用級鋁材
弓集成EXO水質系統和前方避障傳感器
側掃聲納；單頻450kHz
內置水分檢測儀
鋰離子電池，800 WHrs，可選的備用尾段和額外的電池組
1-4 節速度范圍，100 米深度等級
以 2.5 節的速度運行 8-10 小時
導航燈，帶紅外和可見 LED（可編程頻閃）

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

The next generation of autonomous water quality vehicles. The i3XO generates high-resolution maps of water quality, water currents, bathymetry, and sonar imagery.

i3XO EcoMapper Autonomous Underwater Vehicle

The i3XO EcoMapper AUV (autonomous underwater vehicle) will provide high resolution water quality data, side scan sonar imaging, downward looking current profiling, and bathymetric surveying.

Overview
YSI Integrated Systems & Services partnered with Ocean Server Technology to combine the Iver3 Autonomous Underwater Vehicle and the YSI EXO water quality system to create the i3XO AUV. The i3XO is the combination of the latest in water quality and AUV’s combined into one robust monitoring platform.

The i3XO AUV will provide high resolution water quality data, side scan sonar imaging, downward looking current profiling, and bathymetric surveying. Used by government agencies, military, universities, contractors, and private organizations, the versatility of the i3XO is perfect for all your monitoring requirements.

Researchers and Scientists Rely on AUVs, Smaller, Faster Instrumentation Enables Real-Time Mapping, Sensing

Features:
One person deployable system
Intuitive Point and Click mission planning (user defined or predefined patterns)
Geo-referenced data
*Up to 8 water quality parameters (*4 sensor ports - using EXO1 Multiparameter Sonde)
Bottom mapping and water column profiling
Operating depth of up to 100 meters
Complete wide-area surveys without the use of a boat

Specifications:
Intel Dual Core 1.6 GHz N2600 processor with MS Windows embedded; Up to 512 GB solid state drive for data storage, Up to 512 GB solid state drive for data storage
Communications; Surface: 2.4 GHz telemetry radio for Handheld Remote; and/or Iridium with cloud based tracking software. Wireless 802.11g Ethernet standard
Navigation; Surface: GPS (WAAS corrected). Subsurface: RDI Doppler Velocity Log(DVL) downward looking, 81M range, depth sensor and corrected compass
48V Servo Controlled DC Motor with 3-blade cast bronze propeller
Charging via a 24V External Connector with USB 2.0 supports
Four independent control planes (Pitch/ Yaw Fins)
60-85” L X 5.8” Dia, 59-85lbs weight
Rugged, lightweight carbon fiber and marine grade aluminum
Bow integrated EXO water quality system and forward object avoidance sensor
Side Scan Sonar; Single frequency 450kHz
Built-in moisture detectors
Li-lon batteries, 800 WHrs, Optional spare tail section with additional battery pack
1-4 knots speed range, 100 meter depth rating
8-10 hours operating time at 2.5 knots
Navigation Lights, with IR and Visible LED’s (programmable strobe)
