美國YSI光學測控儀5500D MultiDO

 產品名稱: 光學測控儀

型號系列:5500D MultiDO

品牌:YSI

產地:美國

價格:**終成交價格需聯系客服




MultiDO測控儀
YSI 5500D 和 AquaManager 軟件專為水產養殖系統設計，將過程控制、報警和數據管理集成到一個產品中。簡單到可以監控一個坦克，強大到足以在世界任何地方管理全面的農業作業。使用光學技術同時測量多個罐或池塘中的溶解氧。

YSI水產養殖監控儀表
YSI 5200A 連續多參數監測儀、5500D 連續光學溶解氧監測儀和 AquaManager 軟件專為水產養殖系統設計，可用于將過程控制、進料、報警和數據管理集成到一個產品中，也可以用于簡單地監測一個水箱. 強大到足以在世界任何地方管理全面的農業作業，但又足夠簡單，任何人都可以使用。

YSI 與 Hanilu 農場的問答
YSI 水產養殖專家 Darrin Honious 與 Hanilu 農場的所有者/經營者 Leland Meador 就 YSI 5500D 連續監測儀、YSI ProODO 手持設備和 YSI AquaViewer II 應用程序如何幫助農場管理溶解氧水平和改進過程控制進行了交談。

美國YSI光學測控儀5500D MultiDO概述

用于連續監測和控制的光學溶解氧 (DO) 計

事實證明，5500D 監視器及其光學探頭是管理超密集養蝦的寶貴工具，可以快速調整以**限度地減少低 DO 造成的壓力，同時設置 DO 上限和下限有助于優化氧氣使用。

專為水產養殖系統設計的 YSI 5500D 溶解氧連續監測儀和 AquaManager 軟件可用于將過程控制、進料、報警和數據管理集成到一個產品中，也可以用于簡單地監測一個水箱。借助 YSI 的 ODO 光學溶解氧技術，您將受益于降低的成本、更少的維護和更好的數據。ODO 傳感器無需更換膜、無需清洗電極、無需攪拌且校準頻率較低。

使用App Store中的AquaViewer應用程序隨時訪問您的設施水質數據，或使用 AquaManager 桌面軟件管理您的網絡。
•MultiDO監視器采用光學DO技術；1-4 DO 探頭輸入，具體取決于型號
•以太網 TCP/IP 或無線通信 - 可選
•事件記錄記錄校準、高低條件等
•帶有 Feed Smart 軟件的條件饋電定時器
•網絡能力高達 32 臺儀器每次通信端口或與 5200A 和 5400s 集成
• 圖形界面功能，使用 AquaManager 軟件可實現快速、可靠的系統狀態
• 即插即用...易于安裝、設置和維護；無需聘請顧問
•靈活的控制軟件
•電子郵件和短信報警
•AquaViewer 應用程序可用于隨時輕松訪問數據

標準的有條件進料計時器 Feed Smart 根據用戶的預設標準管理食物配送。根據用戶可選擇的每日飼喂次數、每日飼料重量、總生物量和飼料轉化率 (FCR) 以及基于水質值的參數控制來管理飼料輸送。與大多數自動供料器的接口。

可選的 AquaManager 桌面軟件允許您從一個中心位置方便地查看、配置或設置儀器。立即查看您的設施概況、管理參數設置點并方便地管理數據以做出明智的運營決策。設施映射功能提供所有池塘或水池的即時概覽，指示其當前狀態。

當與5200A、5400或 5500D 儀器聯網時，YSI IOEM 和 REM 擴展模塊增加了 YSI 水產養殖平臺的靈活性和能力 。將4 個 ( IOEM-4 ) 或 8 個 ( IOEM-8 ) 模擬通道配置為輸入或輸出，以便能夠集成第 3 方傳感器或來自其他設備的輸出。輸出可配置為控制泵、UV 系統、模擬閥，或將數據發送到 SCADA/PLC 系統。 REM （繼電器擴展模塊）在需要控制饋線、照明、加熱器、警報等的地方添加繼電器。

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

MultiDO Monitoring and Control Instrument

Designed specifically for Aquaculture Systems, the YSI 5500D and AquaManager Software integrate process control, alarming, and data management into one product. Simple enough to monitor one tank, powerful enough to manage a full scale farming operation from anywhere in the world. Simultaneously measure dissolved oxygen with optical technology in multiple tanks or ponds.

YSI Aquaculture Monitoring & Control Instrumentation

Engineered specifically for aquaculture systems, the YSI 5200A continuous multiparameter monitor, 5500D continuous optical dissolved oxygen monitor and AquaManager Software can be used to integrate process control, feeding, alarming, and data management into one product or can be used to simply monitor one tank. Powerful enough to manage a full scale farming operation from anywhere in the world yet simple enough for anyone to use.

YSI Q&A with Hanilu Farms

YSI aquaculture expert Darrin Honious talks with Leland Meador, owner/operator of Hanilu Farms, about how the YSI 5500D continuous monitor, the YSI ProODO handheld and the YSI AquaViewer II app have helped the farm manage dissolved oxygen levels and improve process control.

Overview

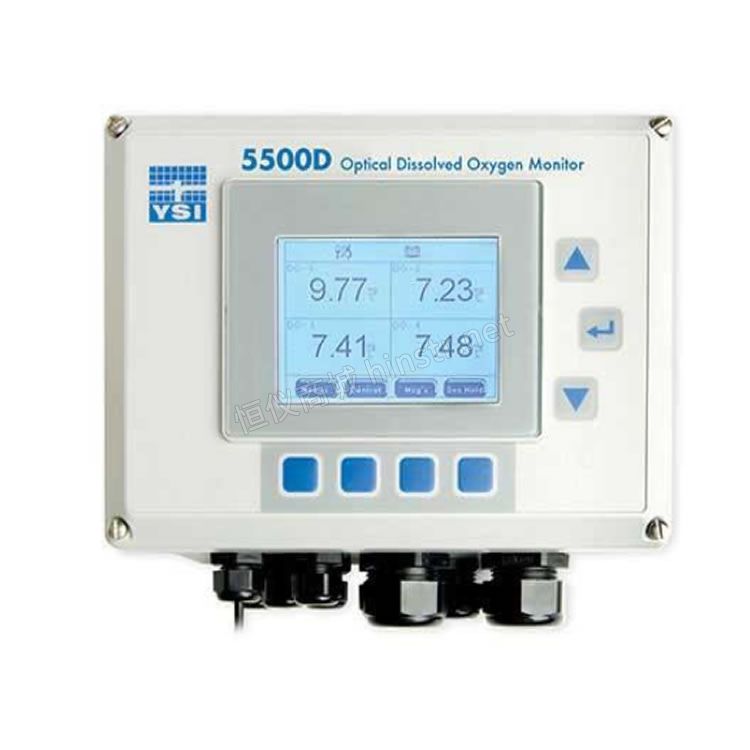

Optical Dissolved Oxygen (DO) Meter for Continuous Monitoring and Control

5500D monitors and their optical probes proved to be a valuable tool for the management of super-intensive shrimp culture, allowing quick adjustments to be made to minimize stress from low DO while setting upper and lower DO limits helped to optimize oxygen use.
- Dr. Tzachi Samocha
Win a Free System! Enter to win - it's quick, easy and smart.

Designed specifically for aquaculture systems, the YSI 5500D continuous monitor for dissolved oxygen and AquaManager Software can be used to integrate process control, feeding, alarming and data management into one product or can be used to simply monitor one tank. With YSI's ODO optical dissolved oxygen technology you'll benefit from reduced costs, less maintenance and better data. The ODO sensors require no membrane changes, no electrode cleaning, no stirring requirement and less frequent calibrations.

Access your facilities water quality data at any time with the AquaViewer App from the App Store or manage your network with AquaManager desktop software.
•MultiDO monitor using optical DO technology; 1-4 DO probe inputs depending on model
•Ethernet TCP/IP or wireless communications - optional
•Event logging records calibrations, high and low conditions, and more
•Conditional feed timer with Feed Smart software included
•Networking capability up to 32 instruments per communications port or integration with 5200As and 5400s
•Graphic interface function for quick, reliable system status with the use of AquaManager software
•Plug-and-play...easy to install, setup and maintain; no need to hire consultants
•Flexible control software
•E-mail and SMS alarming
•AquaViewer app available for easy access to data at any time

The standard conditional feed timer, Feed Smart, manages food delivery based on user's preset criteria. Manage feed delivery based on user-selectable inputs for the number of daily feedings, daily feed weights, total biomass and feed conversion ratios (FCRs), along with parameter control based on water quality values. Interfaces with most auto feeders.

Optional AquaManager desktop software allows you to view, configure, or setup instruments from the convenience of one central location. Instantly see an overview of your facility, manage parameter set points, and conveniently manage data to make informed operational decisions. The facility mapping feature provides an immediate overview of all ponds or tanks indicating their current state.

The YSI IOEM and REM expansion modules increase the flexibility and capability of the YSI aquaculture platform when networked with 5200A, 5400 or 5500D instruments. Configure 4 (IOEM-4) or 8 (IOEM-8) analog channels as inputs or outputs for the ability to integrate 3rd party sensors or output from other devices. Outputs can be configured to control pumps, UV systems, analog valves, or send data to SCADA/ PLC systems. REMs (Relay Expansion Module) add relays where needed to control feeders, lighting, heaters, alarming, and more.
