美國YSI潛入式壓力傳感器WaterLOG

 產品名稱: 潛入式壓力傳感器

型號系列:WaterLOG

品牌:YSI

產地:美國

價格:**終成交價格需聯系客服

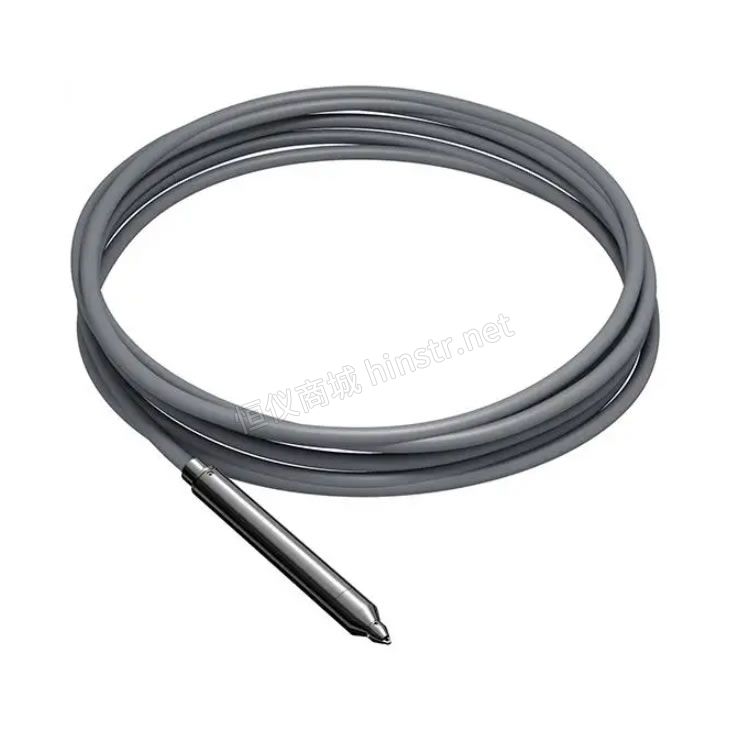

WaterLOG 潛水壓力傳感器

美國YSI潛入式壓力傳感器WaterLOG概述

WaterLOG 潛水壓力傳感器 (H-3123) 專為測量地下水和地表水的壓力、溫度和水位而設計，可以通過長達 1000 英尺 (304.8 m) 的電纜以數字方式傳輸數據。其光滑的不銹鋼隔膜和聚氨酯通風電纜為潛水式壓力傳感器提供了在惡劣環境中生存所需的耐用性。潛水壓力傳感器的獨特之處在于干燥空氣防潮系統，無需現場校準即可提供大氣補償。該傳感器安裝簡單，包含 SDI-12 輸出，設計用于在超過 ±0.01 英尺（3 毫米）水柱的溫度范圍內產生精度。電纜長度從 25 英尺 (7.62m) 到 300 英尺 (91.44m)，增量為 25 英尺 (7.62m)，從 300 英尺 (91.44m) 到 1000 英尺 (304.

美國YSI潛入式壓力傳感器WaterLOG特征：

線性偏差小于0.02%
溫度范圍內的精度超過 ±0.01 英尺（3 毫米）水柱
不銹鋼傳感器膜片、鎮流器和鑄件
SDI-12 輸出
聚氨酯通風傳感器電纜經久耐用
干燥空氣防潮系統提供大氣補償
無需現場校準

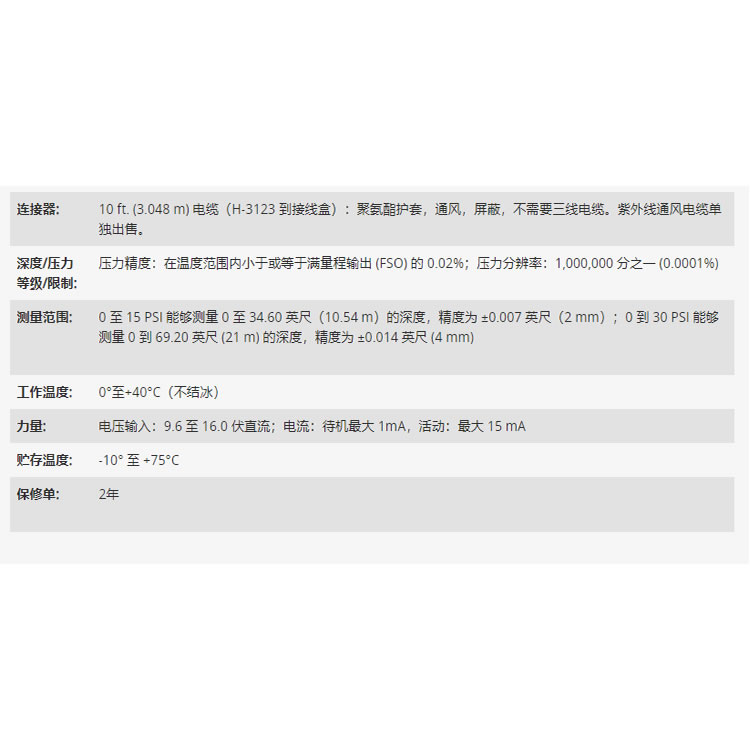

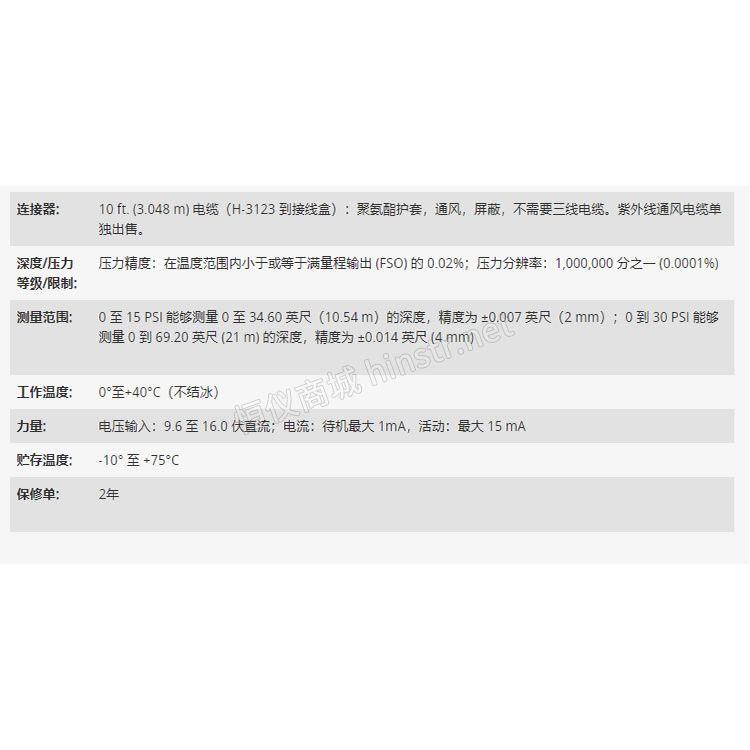

美國YSI潛入式壓力傳感器WaterLOG規格

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

WaterLOG Submersible Pressure Transducer

Overview
Specifically designed to measure ground and surface water pressure, temperature and levels, the WaterLOG Submersible Pressure Transducer (H-3123) can transmit data digitally over cable lengths of up to 1000 feet (304.8 m). Its sleek stainless steel diaphragm and polyurethane vented cable, give the Submersible Pressure Transducer the durability it needs to survive rugged environments. Unique to the Submersible Pressure Transducer is the dry air moisture barrier system, providing atmospheric compensation with no on-site calibration required. The sensor is simple to install, contains SDI-12 output and it designed to produce accuracy over temperature range that exceeds ±0.01 ft (3 mm) of water. Cable lengths are available from 25 ft (7.62m) to 300 ft (91.44m) in increments of 25 ft (7.62m) and from 300 ft (91.44m) to 1000 ft (304.8m) in increments of 100 ft (34.48m).

Features:
Linear deviation is less than 0.02%
Accuracy over temperature range exceeds ±0.01 ft (3 mm) of water
Stainless steel sensor diaphragm, ballast, and casting
SDI-12 Output
Polyurethane vented sensor cable is durable and rugged
Dry air moisture barrier system provides atmospheric compensation
No on-site calibration required

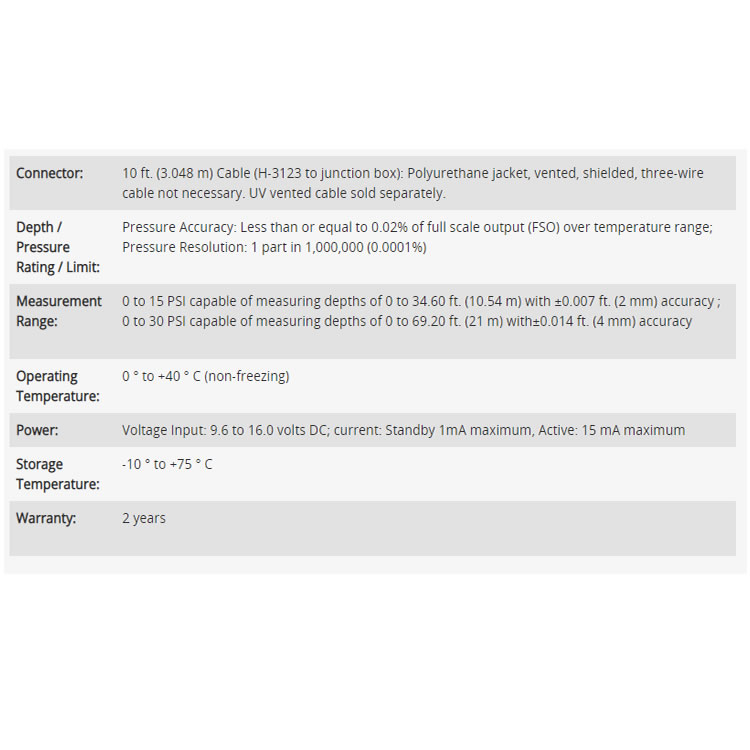

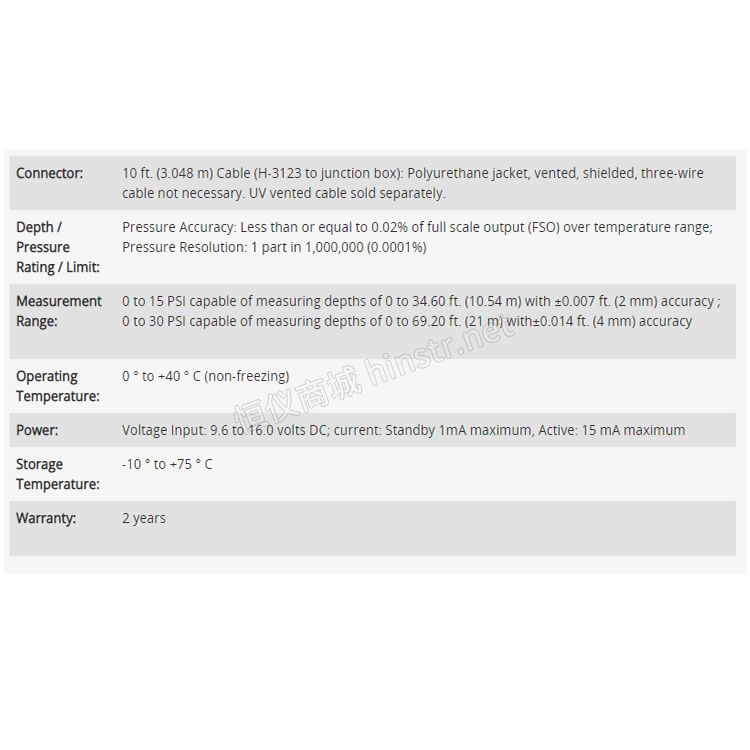

Specifications
