產品介紹
產品名稱：地下水自動記錄儀
品牌：Solinst
產地：加拿大
型號：Levelogger3001

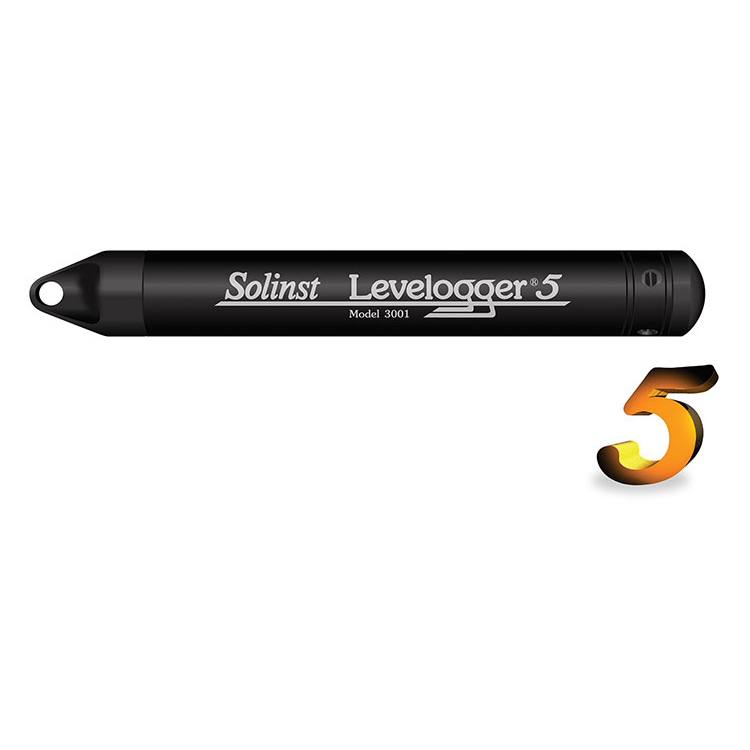

3001水位記錄儀Levelogger 5記錄高度準確的地下水和地表水位和溫度測量值。它結合了壓力傳感器、溫度檢測器、10 年鋰電池
和數據記錄器，密封在 22 mm x 160 mm (7/8" x 6.3") 不銹鋼外殼內，并帶有使用聚合技術烘烤的耐腐蝕涂層。
Levelogger 5 使用 Hastelloy® 壓力傳感器測量絕對壓力，提供高分辨率和 0.05% FS 的精度。讀數在極端壓力和溫度條件下保持穩定。哈氏合金傳感器可以承受 2 倍的過壓而不會造成永久性損壞。結合內外耐用的涂層，Levelogger 5 在惡劣環境中具有很高的耐腐蝕性和耐磨性。
Levelogger 5 采用法拉第籠式設計，可防止雷電引起的電涌或電尖峰。其耐用的免維護設計、高精度和穩定性，使 Levelogger 5 成為長期、連續水位記錄的**可靠儀器。
升級功能：
- 提高通信穩定性：單眼光學接口——更易于清潔、更耐刮擦
- 增加內存：150,000組數據
- 更堅固、更堅固的設計：雙 O 形密封圈，增強泄漏保護
- 更好的熱敏電阻靈敏度：升級的鉑 RTD
- 在惡劣環境中提供卓越的保護：內外防腐耐磨涂層
- 增強的 Levelogger 軟件：改進的診斷實用程序，用于更主動的用戶“自我測試”

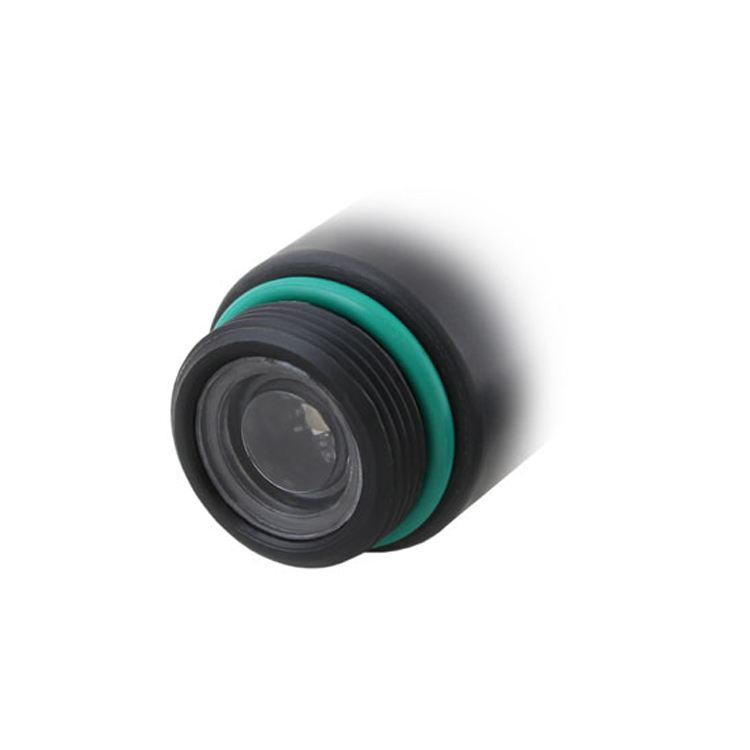

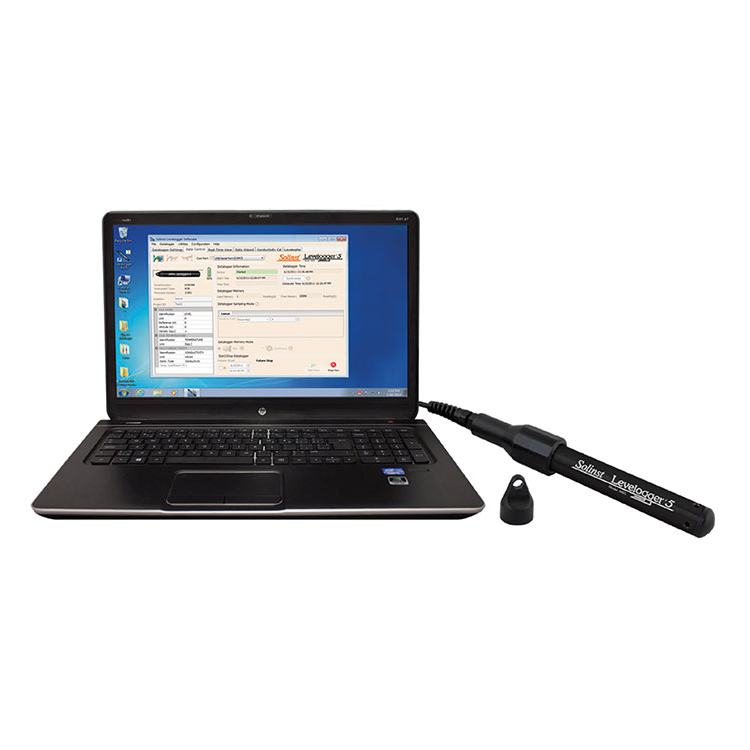

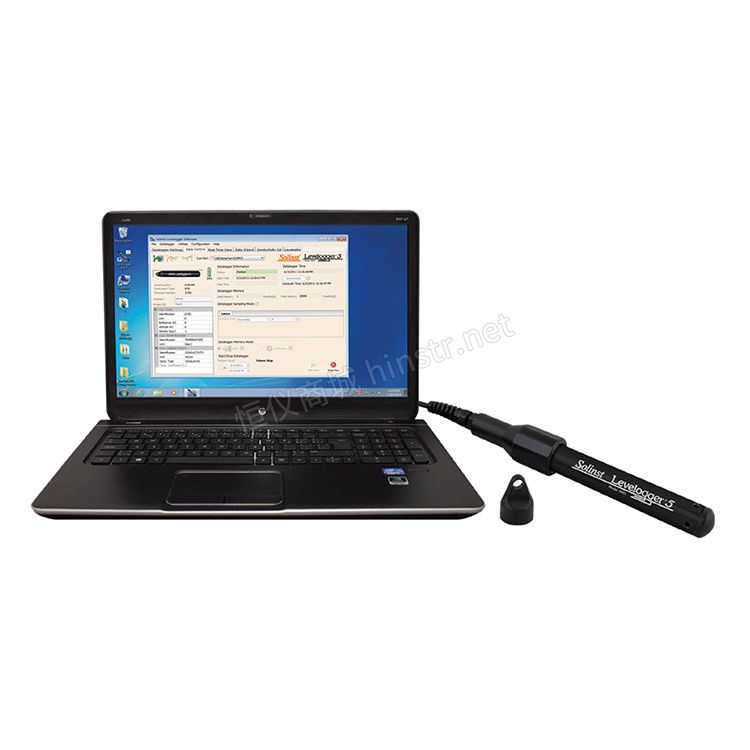

Levelogger 5 具有平滑的單眼光學接口，可輕松清潔并實現更可靠、更快速的通信。使用 Solinst USB 設備，包括新的 Field Reader 5 和 Levelogger PC 軟件，編程和數據下載速度為 57,600 bps。
靈活的溝通：
Levelogger 軟件經過簡化，可輕松對數據記錄器進行編程，以及在辦公室或現場查看和補償數據。數據補償變得簡單；可以一次對多個數據文件進行氣壓補償。
現場 Levelogger 上的Levelogger 5 應用程序界面在您的數據記錄器和智能設備上的 Solinst Levelogger 應用程序之間創建藍牙連接。Solinst 讀數單元 (SRU)連接到您部署的Leveloggers，以顯示和保存自動氣壓補償的實時水位讀數。DataGrabber 5也是一個選項，它是現場就緒的 USB 數據傳輸單元。
遠程監控選項包括LevelSender 5，一種簡單而緊湊的設備，適合 2" 井、STS 遙測系統和RRL 遠程無線電鏈路。此外，Levelogger 5 系列數據記錄器與 SDI-12 兼容。
3001水位計的應用：
- 含水層表征：抽水試驗、段塞試驗等。
- 流域、流域和補給監測
- 流量測量、湖泊和水庫管理
- 港口和潮汐波動測量
- 濕地和雨水徑流監測
- 供水和水箱液位測量
- 礦井水和垃圾滲濾液管理

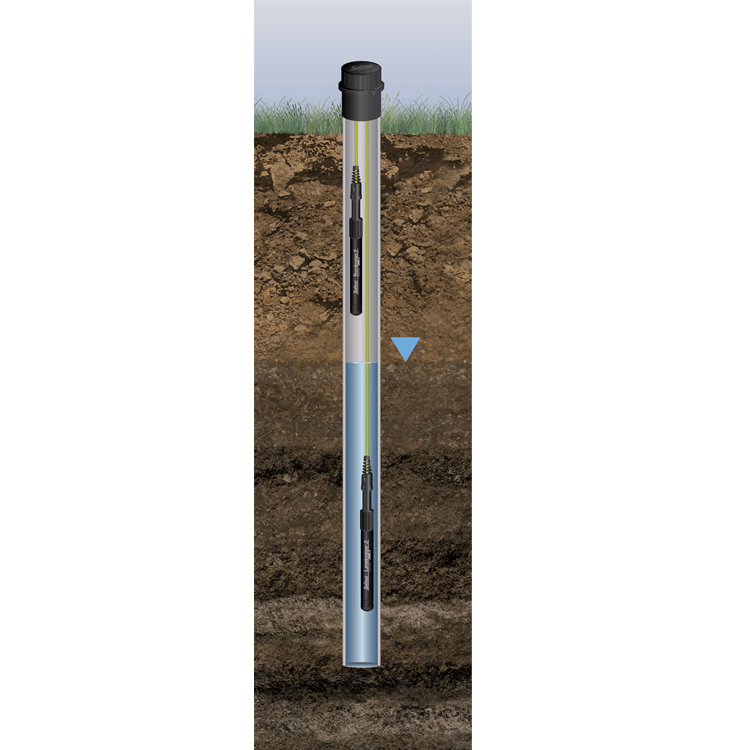

- 井、地表水體和海水環境中的長期水位監測
Levelogger 5 水位數據記錄儀參數：
- 液位傳感器：帶有哈氏合金傳感器的壓阻硅
- 準確性：± 0.05% FS（氣壓計 5：± 0.05 kPa）
- 讀數的穩定性：：優越，低噪音
- 解決：0.002% FS 至 0.0006% FS
- 計量單位：m, cm, ft., psi, kPa, bar, ºC。ºF（氣壓計 5：psi、kPa、mbar、ºC、ºF）
- 正?；鹤詣訙囟妊a償
- 溫度。比較。范圍：0º 至 50ºC（氣壓計 5：-10 至 +50ºC）
- 溫度感應器：鉑電阻溫度檢測器 (RTD)
- 溫度。傳感器精度：± 0.05ºC
- 溫度。傳感器分辨率：0.003°C
- 電池壽命：10 年 - 基于 1 個讀數/分鐘
- 時鐘精度：± 1 分鐘/年（-20ºC 至 80ºC）
- 工作溫度：-20ºC 至 80ºC
- ** # 讀數：150,000組讀數
- 記憶模式：板巖和連續
- 溝通：光纖高速：USB、SDI-12
- 57,600 bps，帶 USB
- 尺寸：22 毫米 x 160 毫米（7/8" x 6.3"）
- 重量：146 克（5.2 盎司）
- 耐腐蝕性能：使用聚合技術的烘烤涂層
- （內外）
- 其他接液材料：Delrin®、Viton®、316L 不銹鋼、哈氏合金、
- 不含 PFAS 的 PTFE 涂層
- 采樣模式：具有重復模式、未來開始、未來停止、實時視圖的線性、事件和用戶可選
- 測量率：1/8 秒至 99 小時
- 氣壓補償：本地軟件向導和一臺 Barologger 5（約 30 公里/20 英里半徑）
楷模 滿量程 (FS) 準確性 解決
氣壓計 僅空氣 ± 0.05 千帕 0.002% FS
M5 5 米（16.4 英尺） ± 0.3 厘米（0.010 英尺） 0.001% FS
M10 10 米（32.8 英尺） ± 0.5 厘米（0.016 英尺） 0.0006% FS
M20 20 米（65.6 英尺） ± 1 厘米（0.032 英尺） 0.0006% FS
M30 30 米（98.4 英尺） ± 1.5 厘米（0.064 英尺） 0.0006% FS
M100 100 米（328.1 英尺） ± 5 厘米（0.164 英尺） 0.0006% FS
M200 200 米（656.2 英尺） ± 10 厘米（0.328 英尺） 0.0006% FS
中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：
The Levelogger 5 records highly accurate groundwater and surface water level and temperature measurements. It combines a pressure sensor, temperature detector, 10-year lithium battery,
and datalogger, sealed within a 22 mm x 160 mm (7/8" x 6.3") stainless steel housing with a corrosion-resistant coating baked-on using polymerization technology.
The Levelogger 5 measures absolute pressure using a Hastelloy pressure sensor, offering high resolution and an accuracy of 0.05% FS. Readings are stable in extreme pressure and temperature conditions. The Hastelloy sensor can withstand 2 times over-pressure without permanent damage. Combined with the durable coating inside and out, the Levelogger 5 has high corrosion and abrasion resistance in harsh environments.
The Levelogger 5 uses a Faraday cage design, which protects against power surges or electrical spikes caused by lightning. Its durable maintenance-free design, high accuracy and stability, make the Levelogger 5 the most reliable instrument for long-term, continuous water level recording.
Upgraded Features：
Increased stability for communication: single-eye optical interface—easier to clean, more scratch resistant
Increased memory: 150,000 sets of data
Stronger, more robust design: double o-ring seals for increased leakage protection
Better thermistor sensitivity: upgraded platinum RTD
Superior protection in harsh environments: corrosion and abrasion resistant coating—inside and out
Enhanced Levelogger Software: improved Diagnostic Utility for more proactive user “self-tests”
The Levelogger 5 features a smooth, single-eye optical interface, which allows for easy cleaning and more reliable, faster communication. Using a Solinst USB device, including the new Field Reader 5, and Levelogger PC Software, programming and data downloading speeds are 57,600 bps.
Flexible Communication：
Levelogger Software is streamlined, making it easy to program dataloggers, and view and compensate data in the office or the field. Data compensation is made simple; multiple data files can be barometrically compensated at once.
The Levelogger 5 App Interface on your in-field Leveloggers creates a Bluetooth® connection between your dataloggers and the Solinst Levelogger App on your smart device. The Solinst Readout Unit (SRU) connects to your deployed Leveloggers to display and save real-time water level readings that are automatically barometrically compensated. Also an option, the DataGrabber 5 is a field-ready USB data transfer unit.
Remote monitoring options include the LevelSender 5, a simple and compact device that fits right in a 2" well, STS Telemetry Systems, and the RRL Remote Radio Link. In addition, Levelogger 5 Series dataloggers are SDI-12 compatible.
Ideal Applications for Leveloggers：
Aquifer characterization: pumping tests, slug tests, etc.
Watershed, drainage basin and recharge monitoring
Stream gauging, lake and reservoir management
Harbour and tidal fluctuation measurement
Wetlands and stormwater run-off monitoring
Water supply and tank level measurement
Mine water and landfill leachate management
Long-term water level monitoring in wells, surface water
bodies and seawater environments
Levelogger 5 Water Level Datalogger：
Level Sensor: Piezoresistive Silicon with Hastelloy Sensor
Accuracy: ± 0.05% FS (Barologger 5: ± 0.05 kPa)
Stability of Readings: Superior, low noise
Resolution: 0.002% FS to 0.0006% FS
Units of Measure: m, cm, ft., psi, kPa, bar, ºC. ºF (Barologger 5: psi, kPa, mbar, ºC, ºF)
Normalization: Automatic Temperature Compensation
Temp. Comp. Range: 0º to 50ºC (Barologger 5: -10 to +50ºC)
Temperature Sensor: Platinum Resistance Temperature Detector (RTD)
Temp. Sensor Accuracy: ± 0.05ºC
Temp. Sensor Resolution: 0.003°C
Battery Life: 10 Years - based on 1 reading/minute
Clock Accuracy: ± 1 minute/year (-20ºC to 80ºC)
Operating Temperature: -20ºC to 80ºC
Maximum # Readings: 150,000 sets of readings
Memory Mode: Slate and Continuous
Communication: Optical high-speed: USB, SDI-12
57,600 bps with USB
Size: 22 mm x 160 mm (7/8" x 6.3")
Weight: 146 grams (5.2 oz)
Corrosion Resistance: Baked-on coating using polymerization
technology (inside and out)
Other Wetted Materials: Delrin®, Viton®, 316L stainless steel, Hastelloy,
PFAS-free PTFE coating
Sampling Modes: Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View
Measurement Rates: 1/8 sec to 99 hrs
Barometric Compensation: Software Wizard and one Barologger 5 in local area (approx. 30 km/20 miles radius)
Models Full Scale (FS) Accuracy Resolution
Barologger Air only ± 0.05 kPa 0.002% FS
M5 5 m (16.4 ft.) ± 0.3 cm (0.010 ft.) 0.001% FS
M10 10 m (32.8 ft.) ± 0.5 cm (0.016 ft.) 0.0006% FS
M20 20 m (65.6 ft.) ± 1 cm (0.032 ft.) 0.0006% FS
M30 30 m (98.4 ft.) ± 1.5 cm (0.064 ft.) 0.0006% FS
M100 100 m (328.1 ft.) ± 5 cm (0.164 ft.) 0.0006% FS
M200 200 m (656.2 ft.) ± 10 cm (0.328 ft.) 0.0006% FS
