加拿大Solinst無線電RRL遙測系統（9200）

 加拿大Solinst無線電RRL遙測系統（9200）

產品名稱：無線電RRL遙測系統
品牌：Solinst
產地：加拿大
型號：9200


遠程無線電鏈路 (RRL) - 9200 型系統提供了一種非常簡單且成本低廉的本地遙測方法。數據通過短距離無線電從現場發送到您的 Home Station PC。RRL 非常適合小型閉環網絡，例如礦場、高爾夫球場和垃圾填埋場監控網絡。通過使用免費的未許可無線電頻段 (ISM)，RRL 具有比蜂窩遙測系統成本更低的優勢。

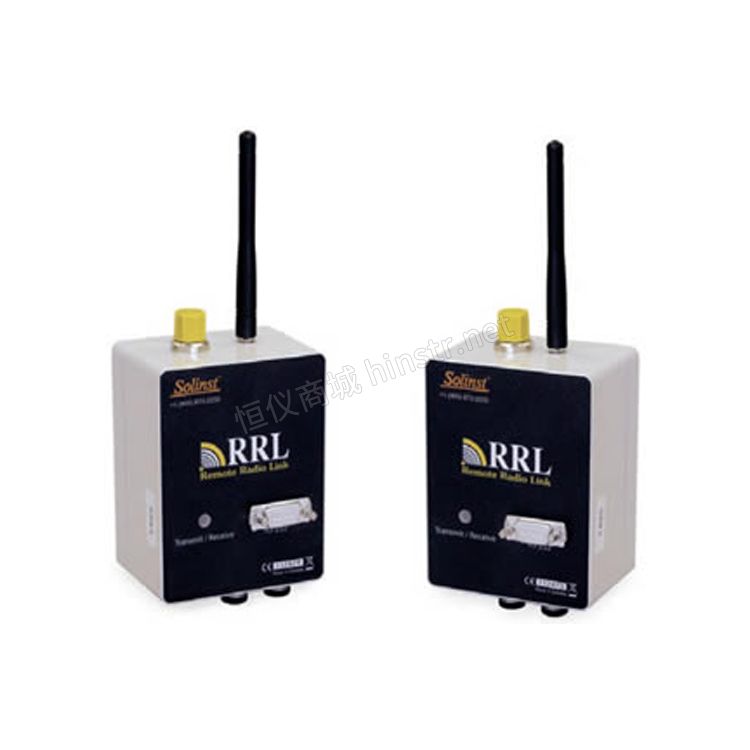

RRL 站：
RRL 站與全向天線、視距傳輸一起工作，因此，它們可以在長達 20 英里（30 公里）的距離上進行通信?？蛇x天線和使用一些電臺作為中繼器可以**限度地擴大距離。
RRL 站使用 900 MHz 無線電模塊。他們使用六節可更換的鋰電池，還可以選擇備用電源。**多可以將四個 Solinst 數據記錄器連接到一個 RRL（使用兩個分路器）。每個 RRL 上的 RS232 連接用于診斷、固件更新和編程目的。

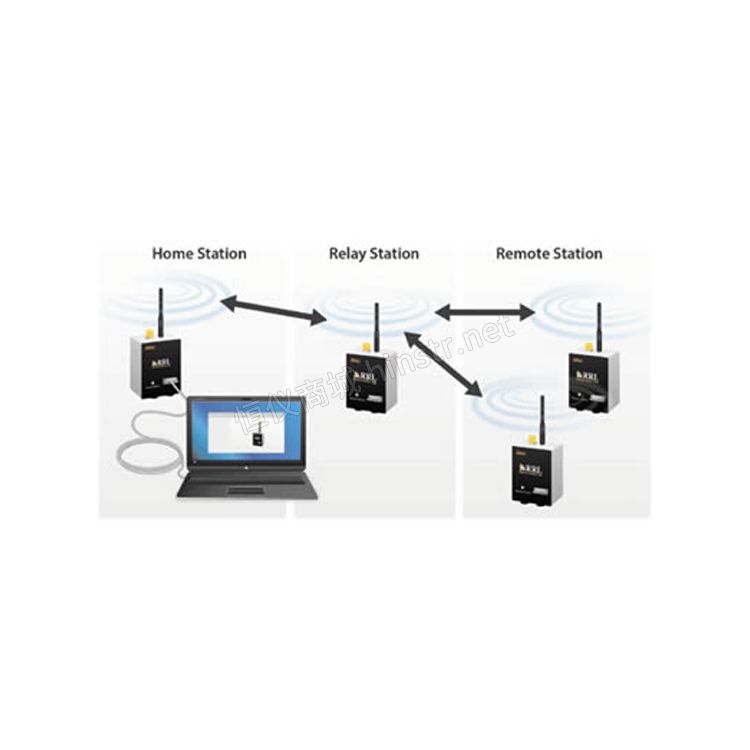

所有 RRL 站都使用相同的硬件，并使用 Solinst 遙測軟件中的向導進行編程，作為主站、遠程站或中繼站（中繼器）。
RRL 站可根據需要互換。RRL 站有一個非易失性內部存儲器，它們存儲收集到的數據，直到成功聯系到主站。



遠程無線電鏈路 (RRL) - 9200 型操作：
系統按兩個基本時間表運行。設置采樣率，RRL 記錄每個連接的數據記錄器的實時讀數。報告速率是數據從 RRL 發送到 Home Station PC 的頻率?？蛇x地，數據記錄器可以設置為獨立于 RRL 記錄和存儲數據。
報告的數據保存在 Home Station PC 上動態更新的數據庫中，也可以使用 Solinst 遙測軟件查看和導出。您可以完全控制您的數據。



遠程無線電鏈路 (RRL) - 9200 型參數：
溝通：900 MHz 無線電
天線：6" (15 cm) 半波，(2.1dBi) 非鉸接式
數據文件類型：.mdb（數據庫）、.xle 或 .csv（導出）
采樣間隔：10 秒 - 99 小時
報告間隔：1 分鐘 - 99 小時
計劃編程：家庭站的 Solinst 遙測軟件
電源：6節3.6V AA可更換鋰電池
電池壽命示例：680 天，基于每小時采樣和每天兩次報告（1 瓦設置）
內存容量：（
報告之間）128 KB（13,000 LT 或 10,000 LTC 讀數）
工作溫度：-20ºC 至 50ºC
尺寸：適合 4.5" 直徑的井
IP等級：IP66（防塵防水，不可浸沒）
兼容的數據記錄器：Levelogger Edge、Barologger Edge、 Levelogger Junior Edge、LTC Levelogger Edge 、Rainlogger Edge、LevelVent和AquaVent，以及 Levelogger Gold、Barologger Gold、Levelogger Junior、LTC Levelogger Junior 和 Rainlogger
連接的數據記錄器數量：4
氣壓補償：在 Solinst 遙測軟件中自動執行或由用戶在外部數據庫中執行



中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

Remote Radio Link (RRL) - Model 9200:
The Solinst RRL System offers a very simple and inexpensive method of local telemetry. Data is sent from the field via shortdistance radio to your Home Station PC. The RRL is excellent for small, closed loop networks such as mine sites, golf courses, and landfill monitoring networks. By using free unlicensed radio bands (ISM), the RRL has the advantage of being lower cost than cellular telemetry systems.

RRL Networks do have the option of bridging with a Solinst STS Edge Telemetry System (see Model 9100 Data Sheet).




RRL Stations:
RRL Stations work with omnidirectional antenna, line-ofsight transmission, therefore, they can communicate over distances up to 20 miles (30 km). Optional antennas and using some stations as repeaters can maximize distances.

RRL Stations use a 900 MHz radio module. They use six replaceable lithium batteries, and also have the option of a back-up power source. Up to four Solinst dataloggers can be connected to one RRL (using two Splitters). The RS232 connection on each RRL is used for diagnostic, firmware updates and programming purposes.

All RRL Stations use the same hardware, and are programmed using a wizard in Solinst Telemetry Software as a Home Station, Remote Station or Relay Station (repeater).

RRL Stations are interchangeable as required. RRL Stations have a non-volatile internal memory, and they store collected data until the Home Station has been successfully contacted.


RRL Telemetry Operation:
Systems operate on two basic schedules. A sample rate is set, at which an RRL records a real-time reading from each attached datalogger. A report rate is the frequency that the data is sent from an RRL to the Home Station PC. Optionally, dataloggers can be set up to record and store data independently of the RRL.

Reported data is saved in a dynamically updated database on the Home Station PC, and can also be viewed and exported using Solinst Telemetry Software. You have complete control of your data.



Remote Radio Link Specifications:
Communication:    900 MHz radio
Antenna:    6" (15 cm) half wave, (2.1dBi) non-articulating
Data File Type:    .mdb (database), .xle or .csv (exported)
Sampling Interval:    10 seconds - 99 hours
Reporting Interval:    1 minute - 99 hours
Schedule Programming:    Solinst Telemetry Software at Home Station
Power Supply:    6 3.6V AA replaceable lithium batteries
Battery Life Example:    680 days based on hourly sampling and reporting twice a day (1 Watt setting)
Memory Capacity:
(Between Reports)    128 KB (13,000 LT or 10,000 LTC readings)
Operating Temperature:    -20ºC to 50ºC

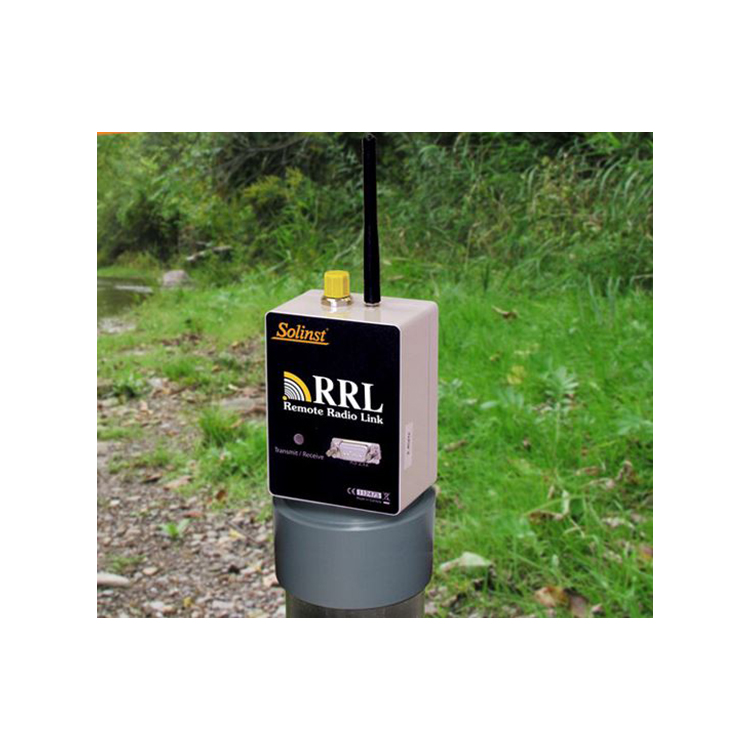

Size:    Fits in a 4.5" diameter well
IP Rating:    IP66 (dust and water proof, can not be submerged)
Compatible Dataloggers:    Levelogger Edge, Barologger Edge, Levelogger Junior Edge, LTC Levelogger Edge, Rainlogger Edge, LevelVent, and AquaVent, as well as Levelogger Gold, Barologger Gold, Levelogger Junior, LTC Levelogger Junior and Rainlogger
Number of Connected dataloggers:    4
Barometric Compensation:    Automatically performed in Solinst Telemetry Software or by user in external database
