加拿大Solinst立管測壓計601型

 產品名稱：立管測壓計
品牌：Solinst
產地：加拿大
型號：601

• Solinst 601 型立管測壓計設計用于放置在鉆孔內，以提供過濾入口點。尖頭 PVC 尖端也適用于推入鉆孔底部的非常松散的沙子、溪流或非常松散的尾礦池沉積物中。
• 601 型立管測壓計非常適合金屬采樣，因為它由一個預成型的 Vyon 管組成，該管設置在一個穿孔的 PVC 壓力計尖端內。601 型非常適用于水位監測、滲透性測量、施工控制、脫水排水作業和邊坡穩定性調查。
• 601 型立管測壓計立管測壓計尖端通過 3/4 英寸內徑 PVC 立管使用滑動接頭連接到表面。異徑接頭也可用于連接其他尺寸的立管或套管?？捎玫臉藴?601 立管測壓計尖端長度為：6 英寸、1 英尺、2 英尺和 3 英尺（15 厘米、30 厘米、60 厘米和 90 厘米）。在此處了解如何使用立管滲壓計。

Solinst 601 型立管測壓計過濾器規格：

• 多孔 HDPE (Vyon)
• 平均孔徑 60 微米
• 阻擋淤泥和細沙

Solinst 601 型立管測壓計的應用：

• 水位監測
• 滲透率測量
• 施工控制
• 脫水和排水操作
• 邊坡穩定性調查
• 空氣噴射：一個 1 英尺的滲壓計有 18 x 3/8 英寸直徑的孔，即 2 平方英寸/英尺。
• 金屬取樣



Solinst 601 型立管測壓計的優點：

• 可靠的
• 低成本
• 60微米濾芯
• 剛性 PVC 外殼保護 Vyon 過濾器安裝

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

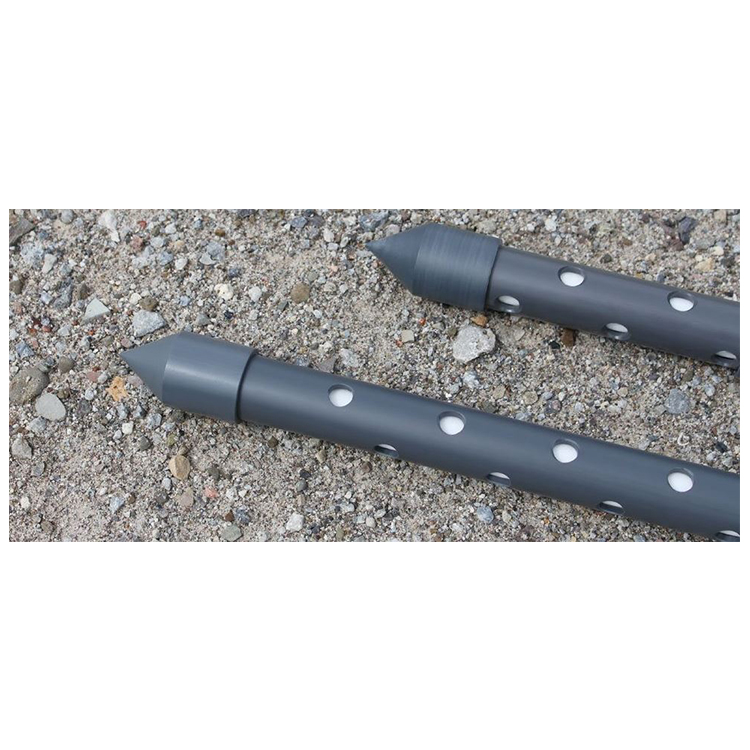

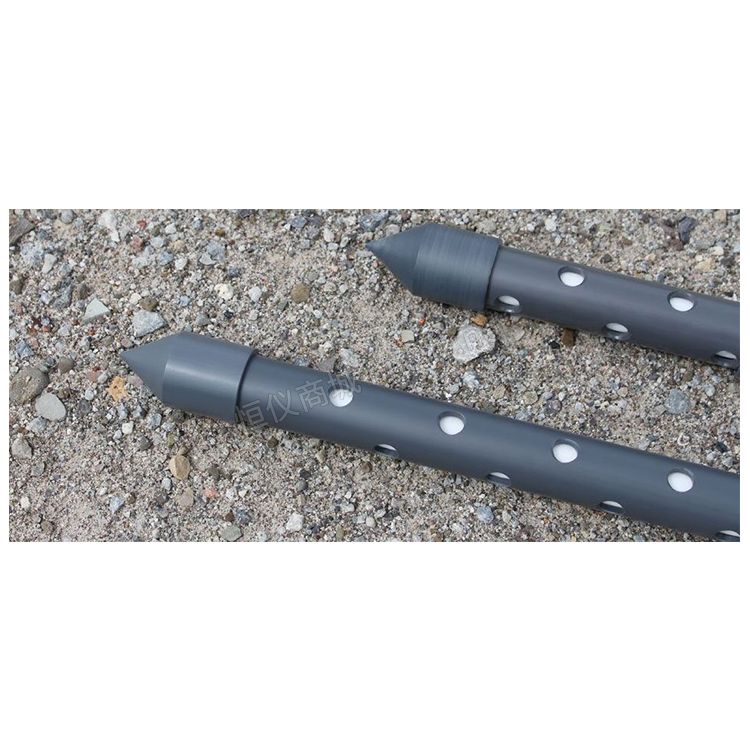

The Solinst Model 601 Standpipe Piezometer is designed to be placed within a drilled hole to provide a filtered inlet point. The pointed PVC tip is also suitable for pushing into very loose sands at the base of a borehole, a stream, or into very loose tailings pond sediments.

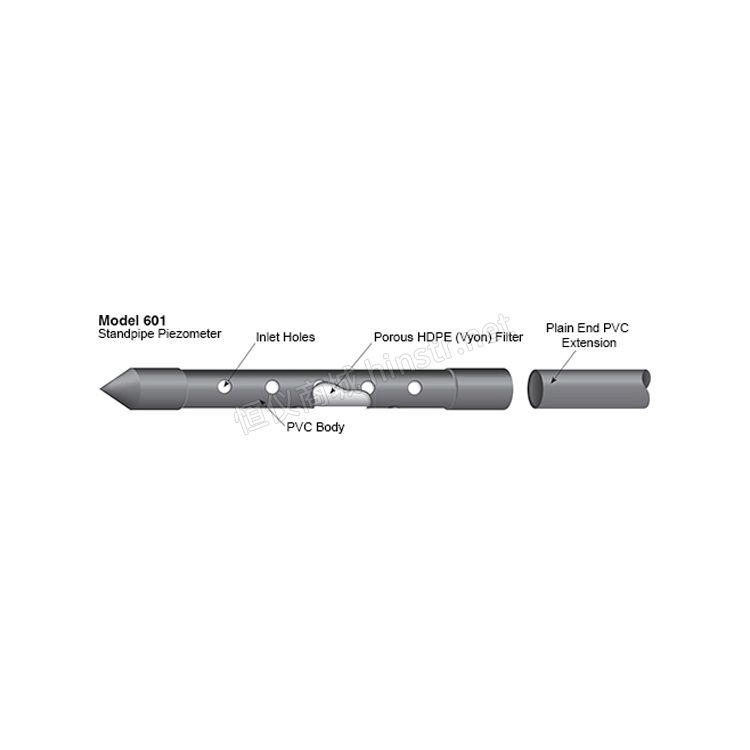

The 601 is excellent for metals sampling, as it is composed of a preformed Vyon tube set inside a perforated PVC piezometer tip. The Model 601 is well suited for water level monitoring, permeability measurements, construction control, de-watering drainage operations, and slope stability investigations.

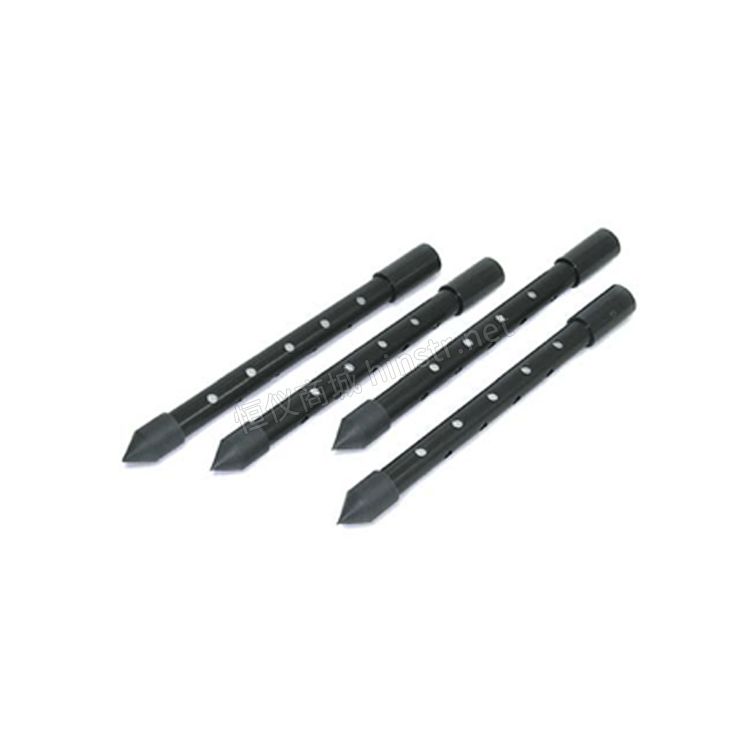

The 601 Standpipe Piezometer tip connects to the surface with 3/4” ID PVC riser pipe using slip-fit couplings. Reducer couplings can also be used to connect to other sizes of riser pipe or casing. The standard 601 Standpipe Piezometer tip lengths available are: 6”, 1 ft, 2 ft and 3 ft (15 cm, 30 cm, 60 cm and 90 cm). Learn how to use a Standpipe Piezometer here.

Solinst also offers the Model 615 stainless steel Drive-Point Piezometer, which is designed to be pushed into the soil below the bottom of a borehole. They can also be driven directly into the ground from the surface.



Filter Specifications：

• Porous HDPE (Vyon)
• Average pore size 60 microns
• Keeps out silts and fine sands

Applications：

• Water level monitoring
• Permeability measurements
• Construction control
• De-watering and drainage operations
• Slope stability investigations
• Air Sparging: a 1 ft. Piezometer has 18 x 3/8” diameter holes i.e. 2 sq inches/ft.
• Metals Sampling



Advantages：

• Reliable
• Low cost
• 60 micron filter element
• Rigid PVC housing protects Vyon filter installation
