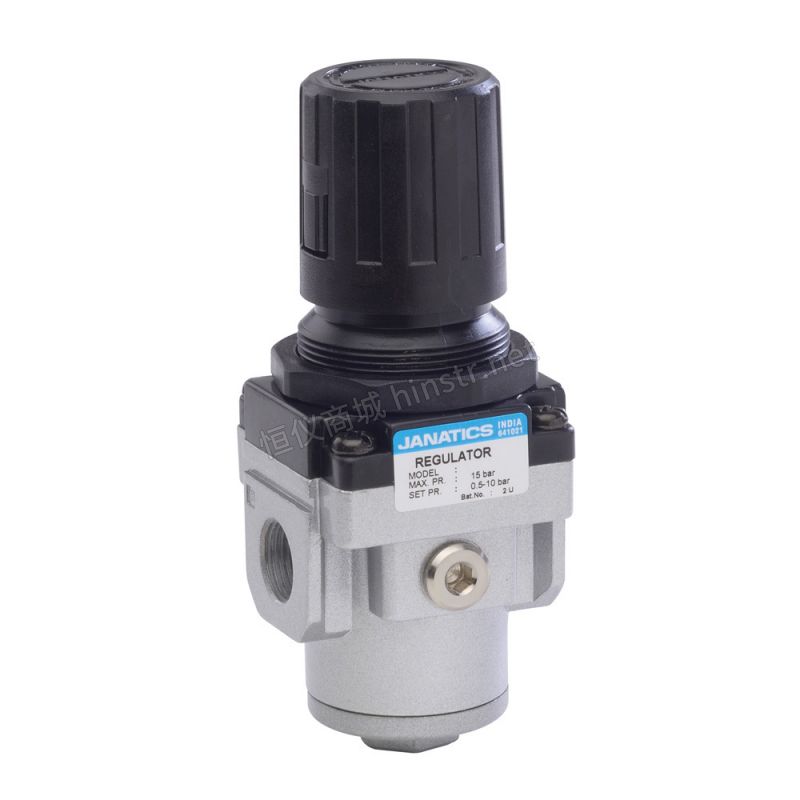

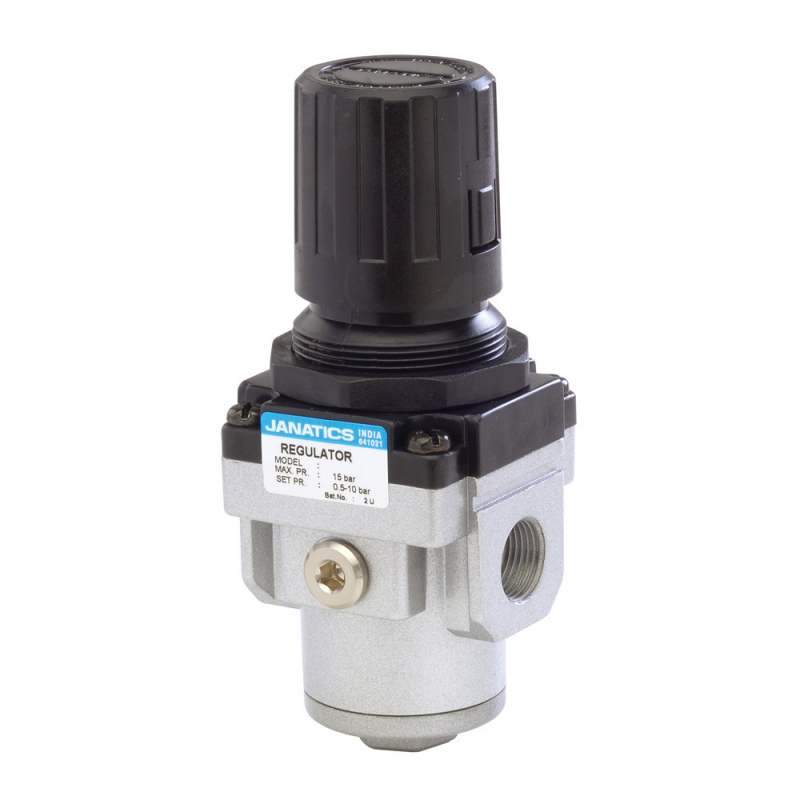

R13904-N穩壓器調節器Janatics吉耐斯

 產品名稱：R13904-N穩壓器調節器Janatics吉耐斯
品牌：Janatics吉耐斯
產地：印度
型號：R13904-N

R13904-N穩壓器調節器Janatics吉耐斯產品詳細信息

標稱寬度：7
螺紋類型：NPT
端口尺寸：1/8
調節壓力范圍：0.5-10 bar
NRV：止回閥
防篡改：不防篡改
LPM中的流速：600
工作壓力范圍：15巴
標準：ISO 6953-1
溫度：5°C至60°C

R13904-N穩壓器調節器Janatics吉耐斯特征

符合ISO 6953 1
適用于面板和模塊化安裝
不升高按下鎖定調節旋鈕，在任何設定壓力下鎖定
隔膜操作，泄壓型
平衡提升閥補償壓力
良好的流量和調節特性
內置止回閥允許空氣反向自由流動。當進氣降低至設定壓力以下時

PRODUCT DETAILS
Nominal Width 7
Thread Type NPT
Port Size 1/8
Regulating Pressure Range 0.5 - 10bar
NRV Non Return Valve
Tamper Proof Without Tamper proof
Flow Rate In LPM 600
Working Pressure Range 15 Bar
Standard ISO 6953-1
Temperature 5 ° C to 60 ° C


FEATURES
Conform to ISO 6953 1
Suitable for panel and modular mountings
Non raising Press to Lock adjusting knob for locking at any set pressure
Diaphragm operated, relieving type
Pressure compensated by balanced poppet
Good flow and regulating characteristics
Built in non return valve allows free air flow in reverse direction. When the inlet air is reduced by and below the setup pressure
