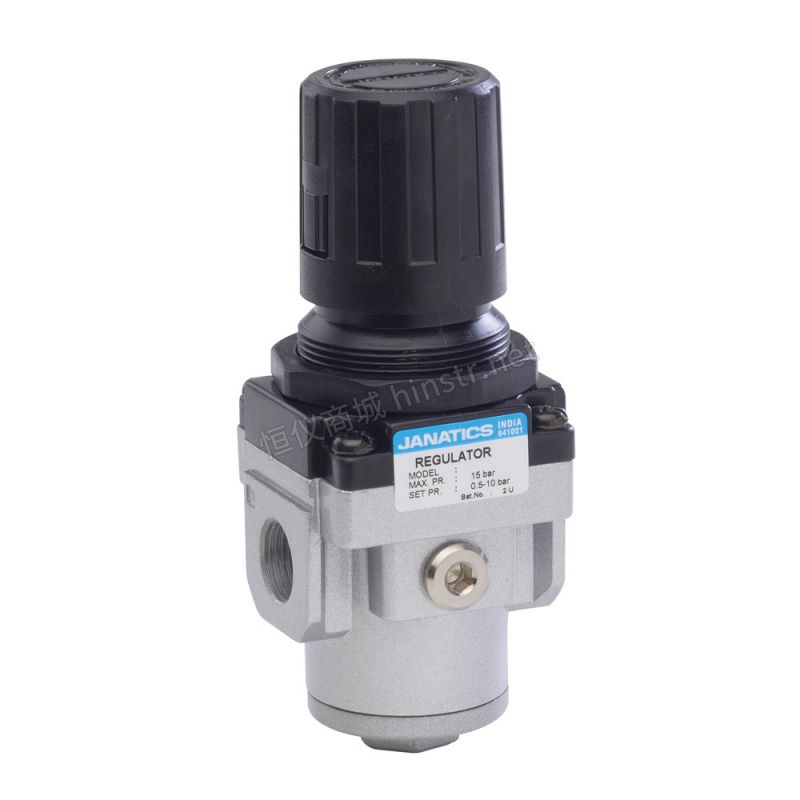

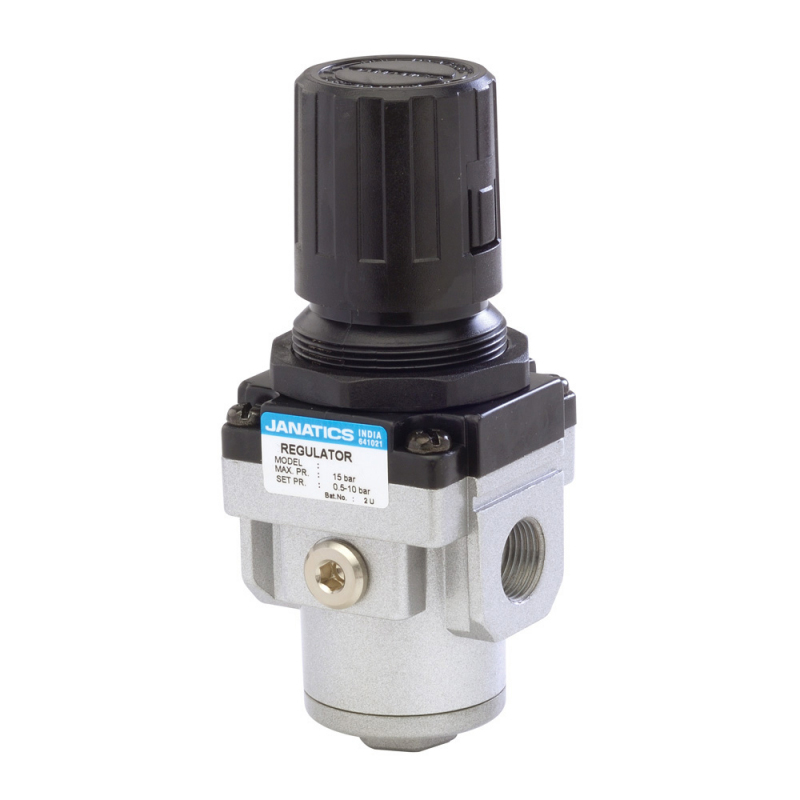

R14913穩壓器調節器Janatics吉耐斯

 產品名稱：R14913穩壓器調節器Janatics吉耐斯
品牌：Janatics吉耐斯
產地：印度
型號：R14913

R14913穩壓器調節器Janatics吉耐斯產品詳細信息

標稱寬度：13
螺紋類型：NPT
端口尺寸：1/4
調節壓力范圍：0.5-7巴
無止回閥的NRV
防篡改：不防篡改
LPM中的流速： 1750
工作壓力范圍：10巴
標準：ISO 6953-1
溫度：5°C至60°C

R14913穩壓器調節器Janatics吉耐斯特征

符合ISO 6953 1
適用于面板和模塊化安裝
不升高按下鎖定調節旋鈕，在任何設定壓力下鎖定
隔膜操作，泄壓型
平衡提升閥補償壓力
良好的流量和調節特性
內置止回閥允許空氣反向自由流動。當進氣降低至設定壓力以下時

PRODUCT DETAILS
Nominal Width 13
Thread Type NPT
Port Size 1/4
Regulating Pressure Range 0.5 - 7 Bar
NRV Without Non return valve
Tamper Proof without Tamper proof
Flow Rate In LPM 1750
Working Pressure Range 10 Bar
Standard ISO 6953-1
Temperature 5 ° C to 60 ° C


FEATURES
Conform to ISO 6953 1
Suitable for panel and modular mountings
Non raising Press to Lock adjusting knob for locking at any set pressure
Diaphragm operated, relieving type
Pressure compensated by balanced poppet
Good flow and regulating characteristics
Built in non return valve allows free air flow in reverse direction. When the inlet air is reduced by and below the setup pressure
